Individual hose record

730501000916 Hose Repair Specifications

Excavator · Sunward · SWE150W · Attachments

Finished length540 mm

Locate this hose

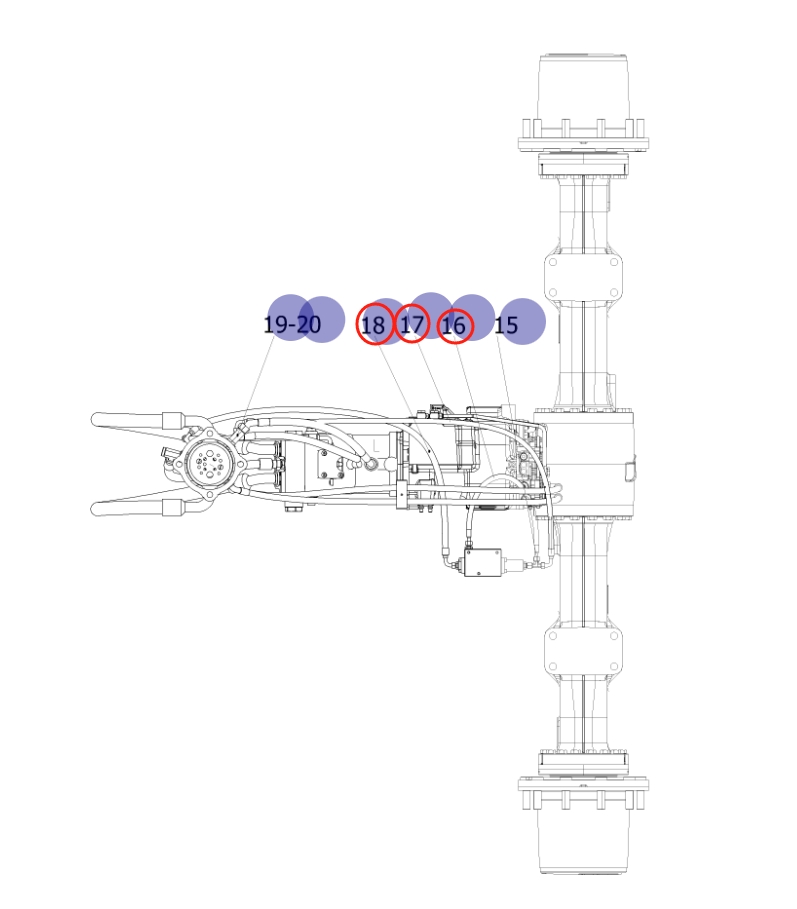

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 730501000916 before removing the hose.

Sunward SWE150W installation diagram showing hydraulic hose 730501000916 at Pipe No. 16 — Sunward SWE150WPart 730501000916 · Pipe No. 16Open full-size diagram

Repair specifications

Part number: 730501000916
Diagram pipe number: 16
Installation route: 变速箱~过渡阀块(变速箱左)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 540 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 22

730501000574

Installation route: 推土铲手柄D1~分配阀XBd

Length: 1,850 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 5

730502002618

Installation route: 前桥铁管~右轮上作动筒

Length: 900 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 20

730501000916

Installation route: 过渡阀块(变速箱左)~过渡阀阀块(变速箱左)

Length: 540 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 1

730504001510

Installation route: 先导控制阀P2~电磁阀(蓄能器)FP

Length: 700 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 90°公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
