Individual hose record
4436267 Hose Repair Specifications
Excavator · Hitachi · ZX180W · Attachments – Lock Valve
Finished length420 mm
Locate this hose

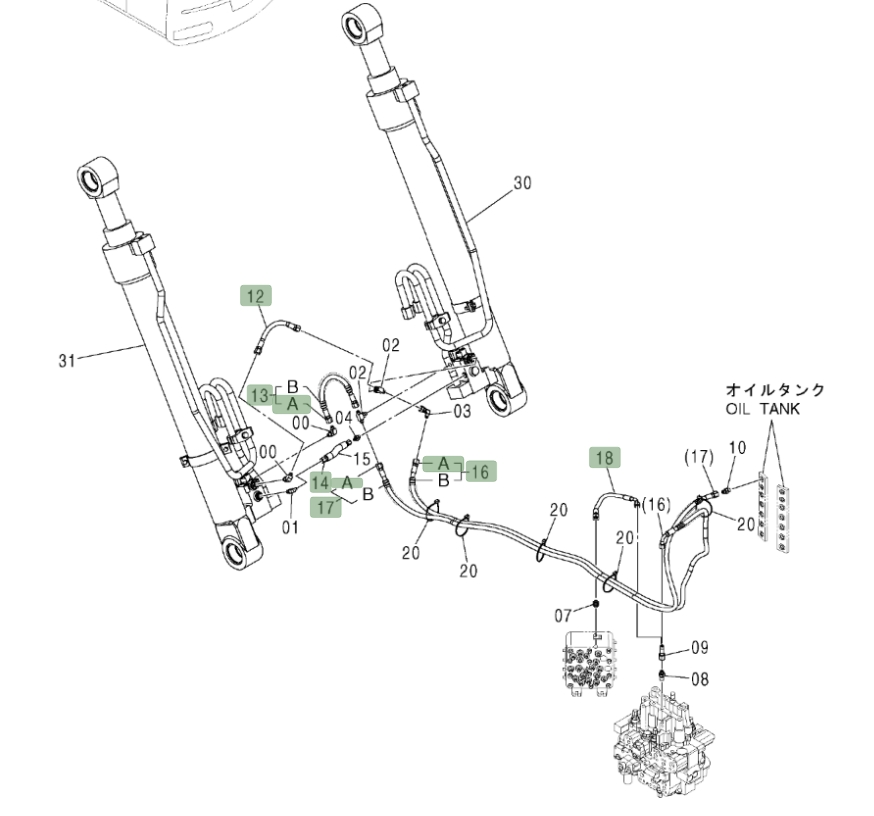

Installation diagram — Pipe No. 13A
Locate Pipe No. 13A in the diagram, then confirm part number 4436267 before removing the hose.
Repair specifications
- Part number
- 4436267
- Diagram pipe number
- 13A
- Installation route
- Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 420 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
