Individual hose record
73050200A486 Hose Repair Specifications
Excavator · Sunward · SWE25UF · Control Lever
Finished length1,100 mm
Locate this hose

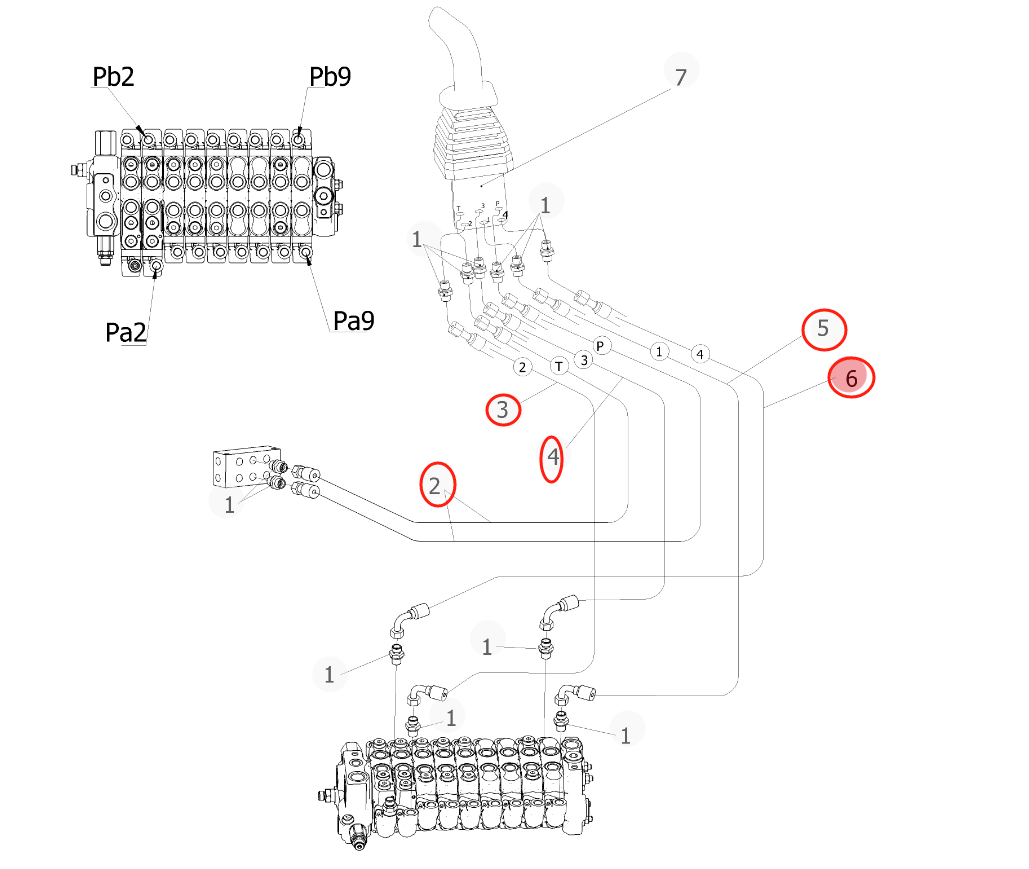

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 73050200A486 before removing the hose.
Repair specifications
- Part number
- 73050200A486
- Diagram pipe number
- 4
- Installation route
- 左手柄~分配阀PB9
- Hose specification
- DN5;1SN-03;25MPa
- Finished length
- 1,100 mm
- Working pressure
- 25 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
