Individual hose record

9201406 Hose Repair Specifications

Excavator · Hitachi · ZX135US · Attachments

Finished length500 mm

Locate this hose

Installation diagram — Pipe No. 41

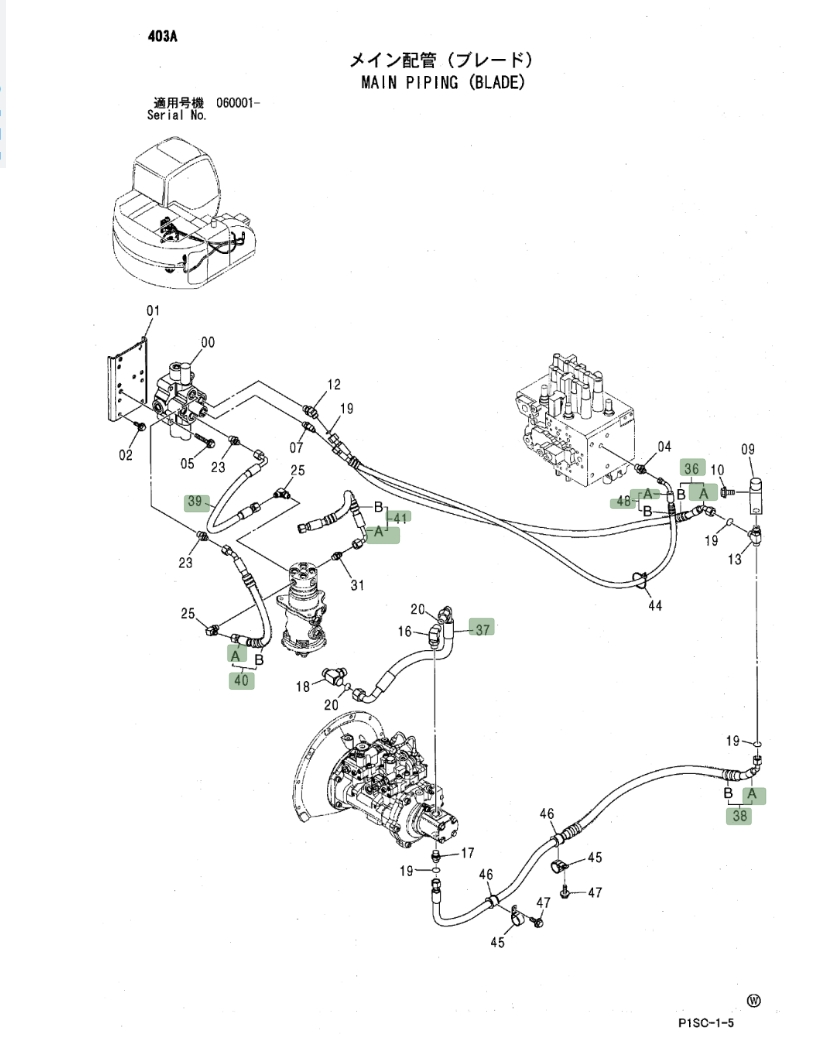

Locate Pipe No. 41 in the diagram, then confirm part number 9201406 before removing the hose.

Hitachi ZX135US installation diagram showing hydraulic hose 9201406 at Pipe No. 41 — Hitachi ZX135USPart 9201406 · Pipe No. 41Open full-size diagram

Repair specifications

Part number: 9201406
Diagram pipe number: 41
Installation route: 回转接头~控制阀(推土铲)
Hose specification: DN12;1SN-8;7Mpa
Finished length: 500 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1
