Individual hose record
4298737 Hose Repair Specifications
Excavator · Hitachi · ZX26U-5N · Hydraulic Tank
Finished length1,820 mm
Locate this hose

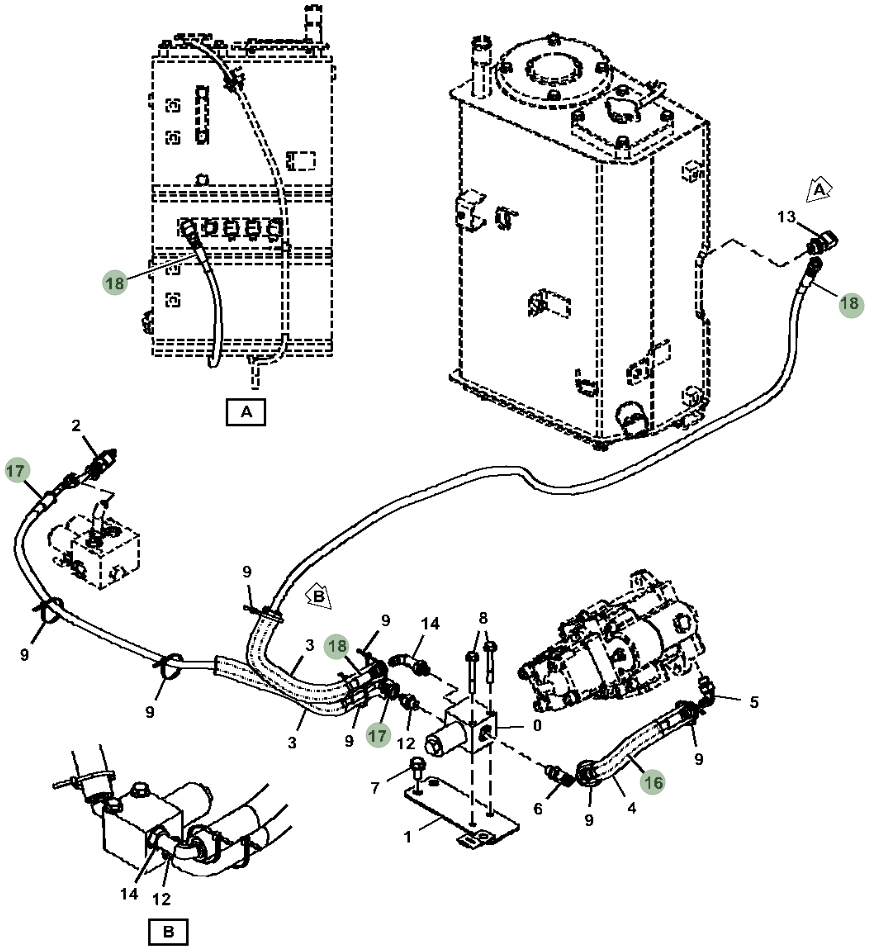

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 4298737 before removing the hose.
Repair specifications
- Part number
- 4298737
- Diagram pipe number
- 18
- Installation route
- 液压油箱~电磁阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 1,820 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
