Individual hose record
4447490 Hose Repair Specifications
Excavator · Hitachi · ZX290LC-5G · Swivel Joint
Finished length1,750 mm
Locate this hose

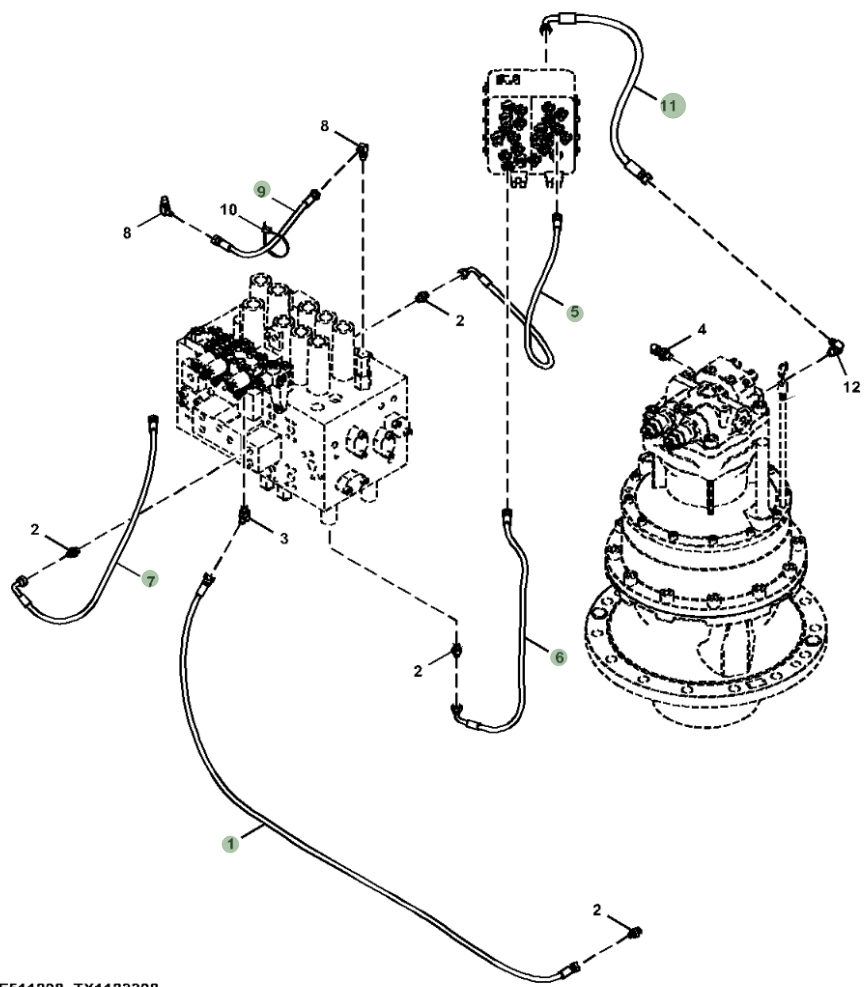

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 4447490 before removing the hose.
Repair specifications
- Part number
- 4447490
- Diagram pipe number
- 1
- Installation route
- 回转接头~电磁阀
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,750 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
