Individual hose record

4203011 Hose Repair Specifications

Excavator · Hitachi · EX100 · Hydraulic Tank

Finished length1,400 mm

Locate this hose

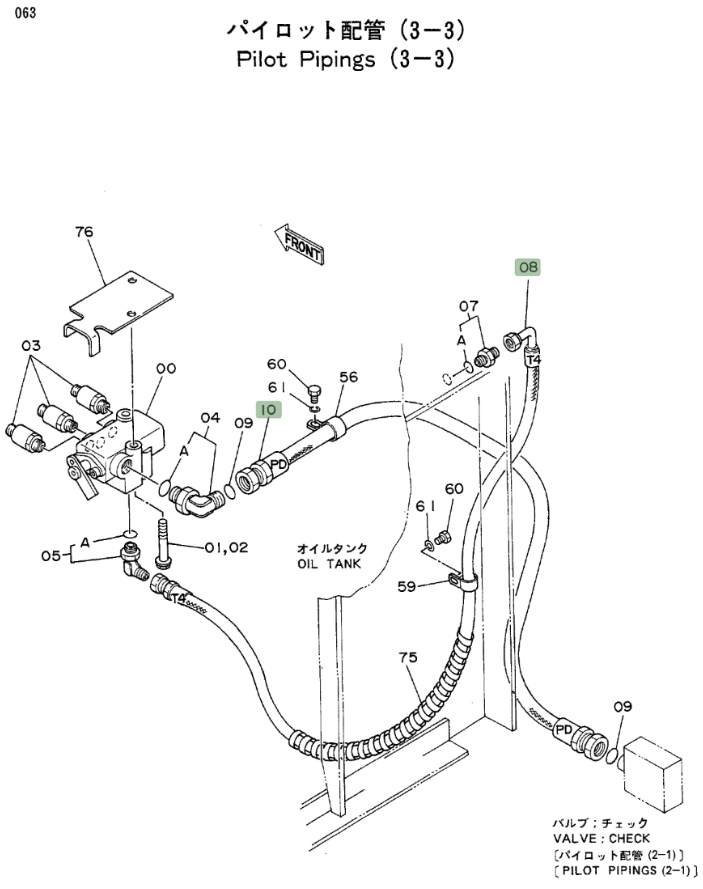

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 4203011 before removing the hose.

Hitachi EX100 installation diagram showing hydraulic hose 4203011 at Pipe No. 8 — Hitachi EX100Part 4203011 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 4203011
Diagram pipe number: 8
Installation route: 液压油箱~进回油阀
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 1,400 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1
