Individual hose record
4203123 Hose Repair Specifications
Excavator · Hitachi · EX200LC · Attachments
Finished length1,800 mm
Locate this hose

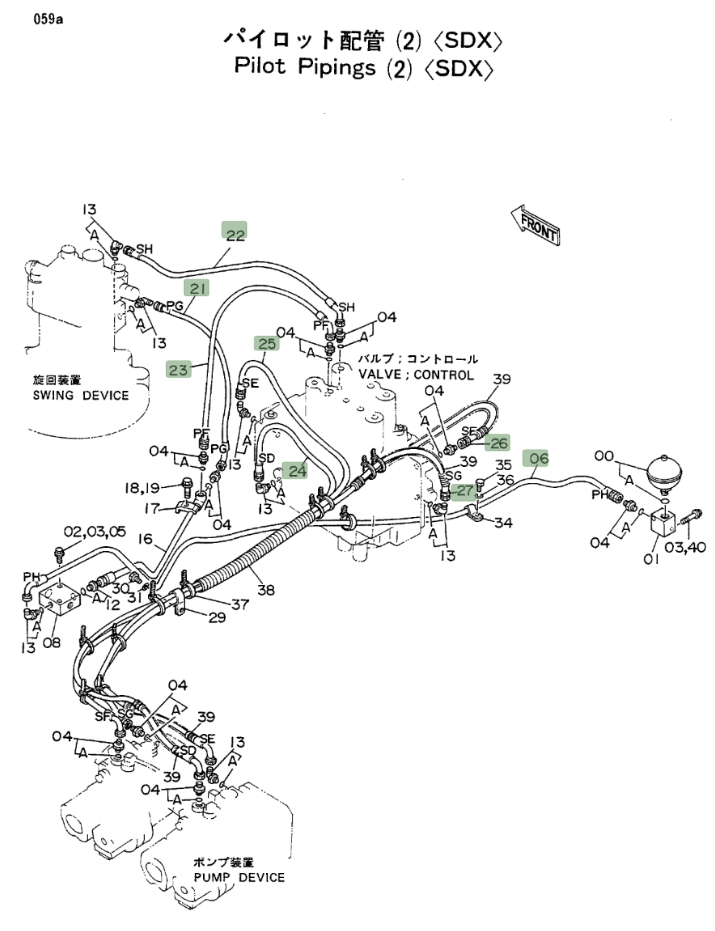

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 4203123 before removing the hose.
Repair specifications
- Part number
- 4203123
- Diagram pipe number
- 6
- Installation route
- 蓄能器~过渡阀块(分配阀)
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 1,800 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
