4369215 Hose Repair Specifications

Excavator · Hitachi · EX750-5 · Attachments – Breaker

Finished length1,600 mm

Locate this hose

Installation diagram — Pipe No. 27

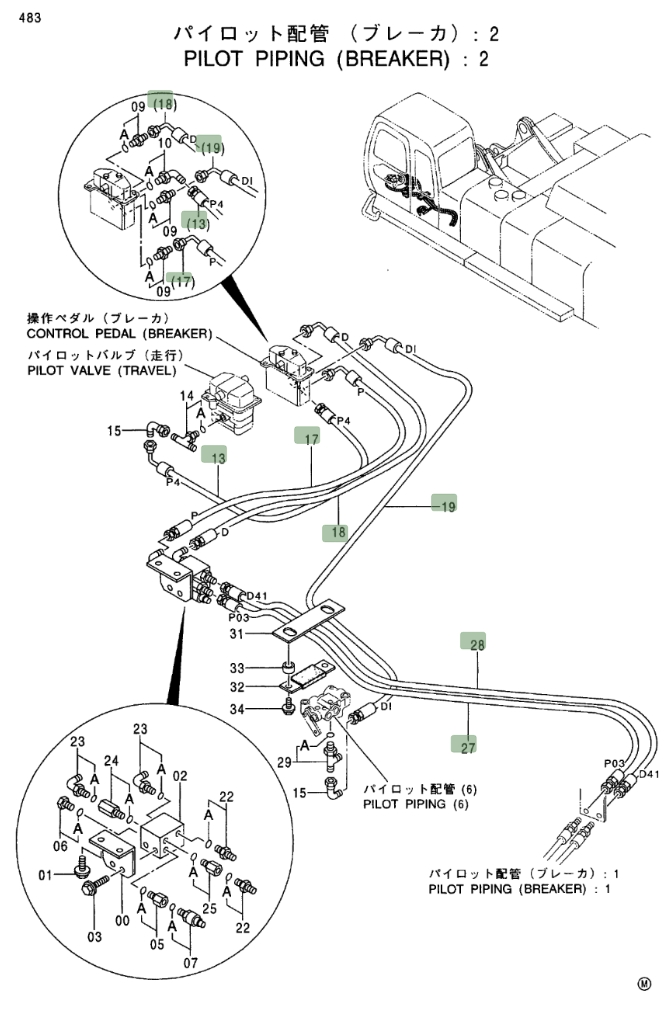

Locate Pipe No. 27 in the diagram, then confirm part number 4369215 before removing the hose.

Hitachi EX750-5 installation diagram showing hydraulic hose 4369215 at Pipe No. 27 — Hitachi EX750-5Part 4369215 · Pipe No. 27Open full-size diagram

Repair specifications

Part number: 4369215
Diagram pipe number: 27
Installation route: 过渡阀块(踏板)~接头(踏板)
Hose specification: DN10;1SN-6;7Mpa
Finished length: 1,600 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 28

4375860

Installation route: 过渡阀块(踏板)~接头(踏板)

Length: 1,600 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 0

4375860

Installation route: 分配阀左~接线板(遮蔽板下)

Length: 1,600 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 1

4364477

Installation route: 接线板(遮蔽板)~接头(破碎器踏板)

Length: 3,410 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制外螺纹37°外锥
Right fitting: 美制外螺纹37°外锥

View full repair specifications
