Individual hose record
4450910 Hose Repair Specifications
Excavator · Hitachi · ZX800 · Hydraulic Tank
Finished length1,600 mm
Locate this hose

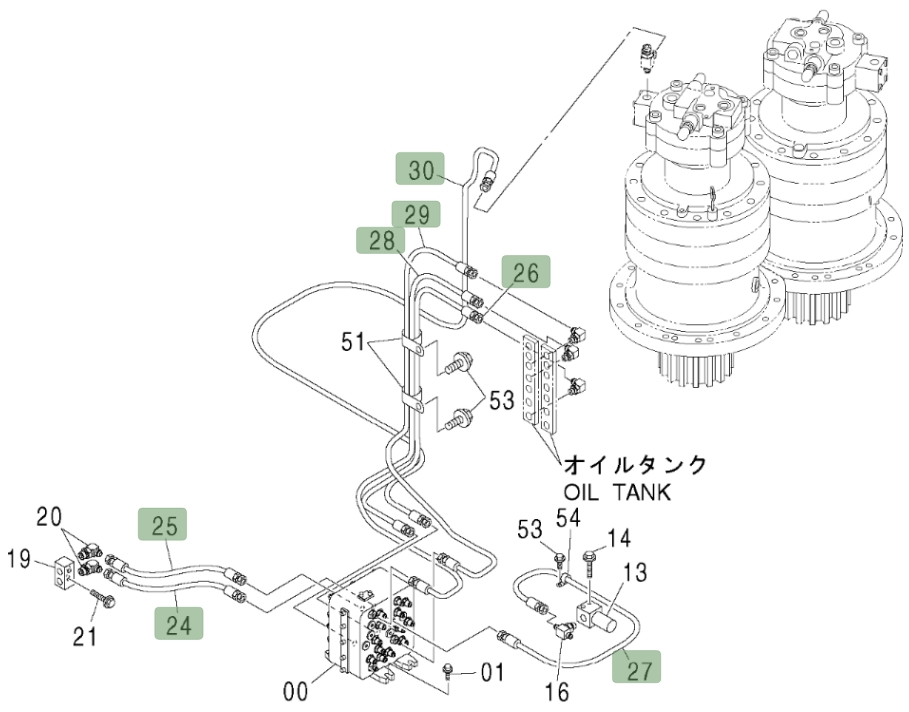

Installation diagram — Pipe No. 26
Locate Pipe No. 26 in the diagram, then confirm part number 4450910 before removing the hose.
Repair specifications
- Part number
- 4450910
- Diagram pipe number
- 26
- Installation route
- 液压油箱~中转接头
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,600 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
