Individual hose record

4452035 Hose Repair Specifications

Excavator · Hitachi · ZX200LC · Attachments – Breaker

Finished length400 mm

Locate this hose

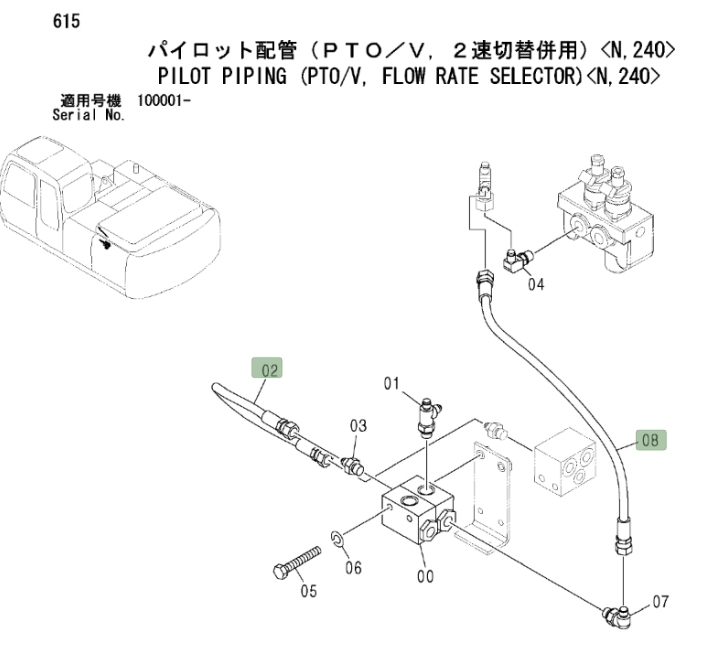

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 4452035 before removing the hose.

Hitachi ZX200LC installation diagram showing hydraulic hose 4452035 at Pipe No. 2 — **Hitachi ZX200LC**Part 4452035 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 4452035
Diagram pipe number: 2
Installation route: 过渡阀块(流速切换)~过渡阀块(隔板)
Hose specification: DN6;1SN-4;7Mpa
Finished length: 400 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
