Individual hose record

4207988 Hose Repair Specifications

Excavator · Hitachi · EX300LC · Hydraulic Tank

Finished length1,650 mm

Locate this hose

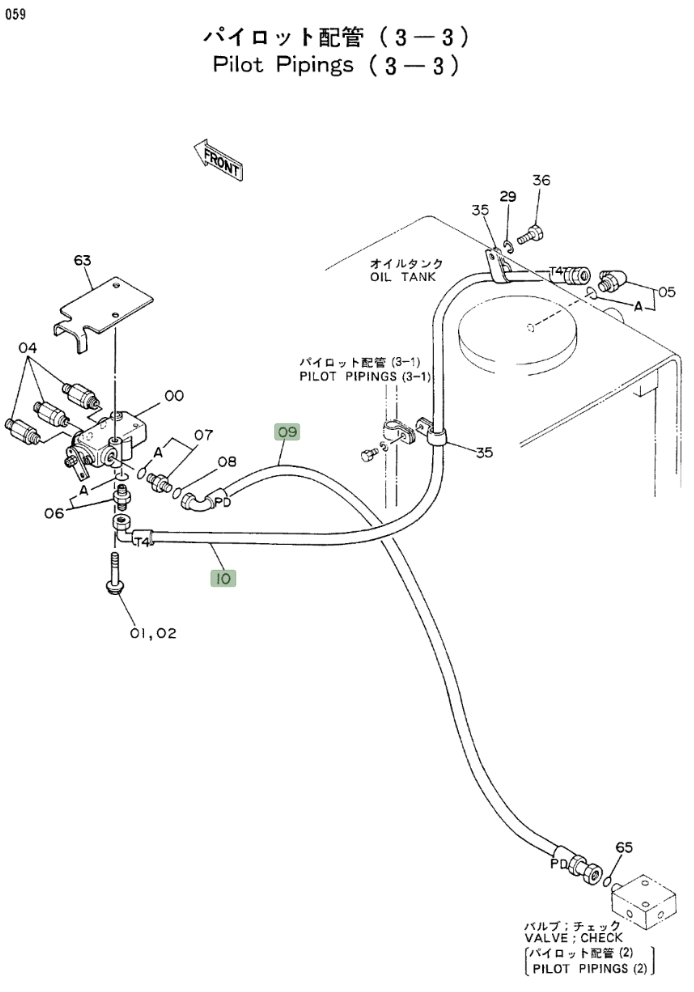

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 4207988 before removing the hose.

Hitachi EX300LC installation diagram showing hydraulic hose 4207988 at Pipe No. 10 — Hitachi EX300LCPart 4207988 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: 4207988
Diagram pipe number: 10
Installation route: 液压油箱~进回油阀
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 1,650 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1
