Individual hose record

KBJ10430 Hose Repair Specifications

Excavator · Case · CX250E LC · Swivel Joint

Finished length820 mm

Locate this hose

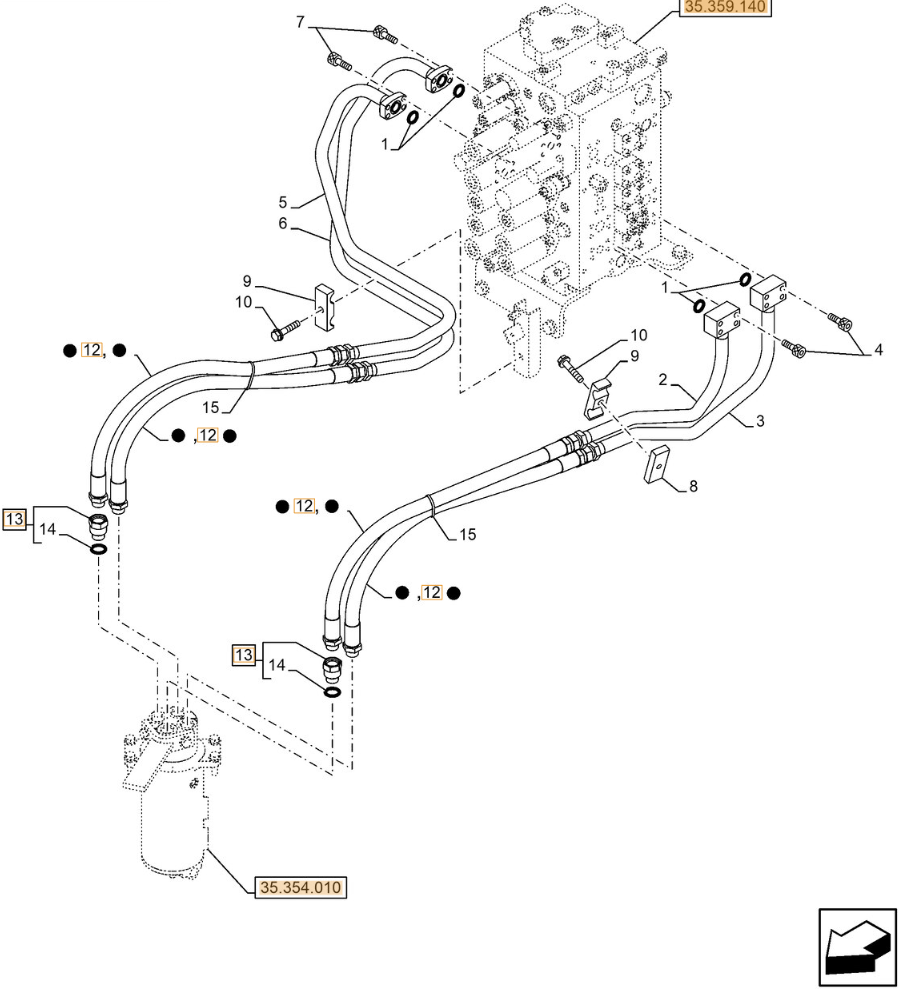

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number KBJ10430 before removing the hose.

Part number: KBJ10430
Diagram pipe number: 12
Installation route: 回转接头~分配阀
Hose specification: DN19;4SP-12;35MPa
Finished length: 820 mm
Working pressure: 35 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 英制外螺纹平面密封
Quantity: 4

Same system

Diagram Pipe No. 8

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 10

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,300 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
