Individual hose record
4630949 Hose Repair Specifications
Excavator · Hitachi · ZX350LC-3 · Solenoid Valve
Finished length560 mm
Locate this hose

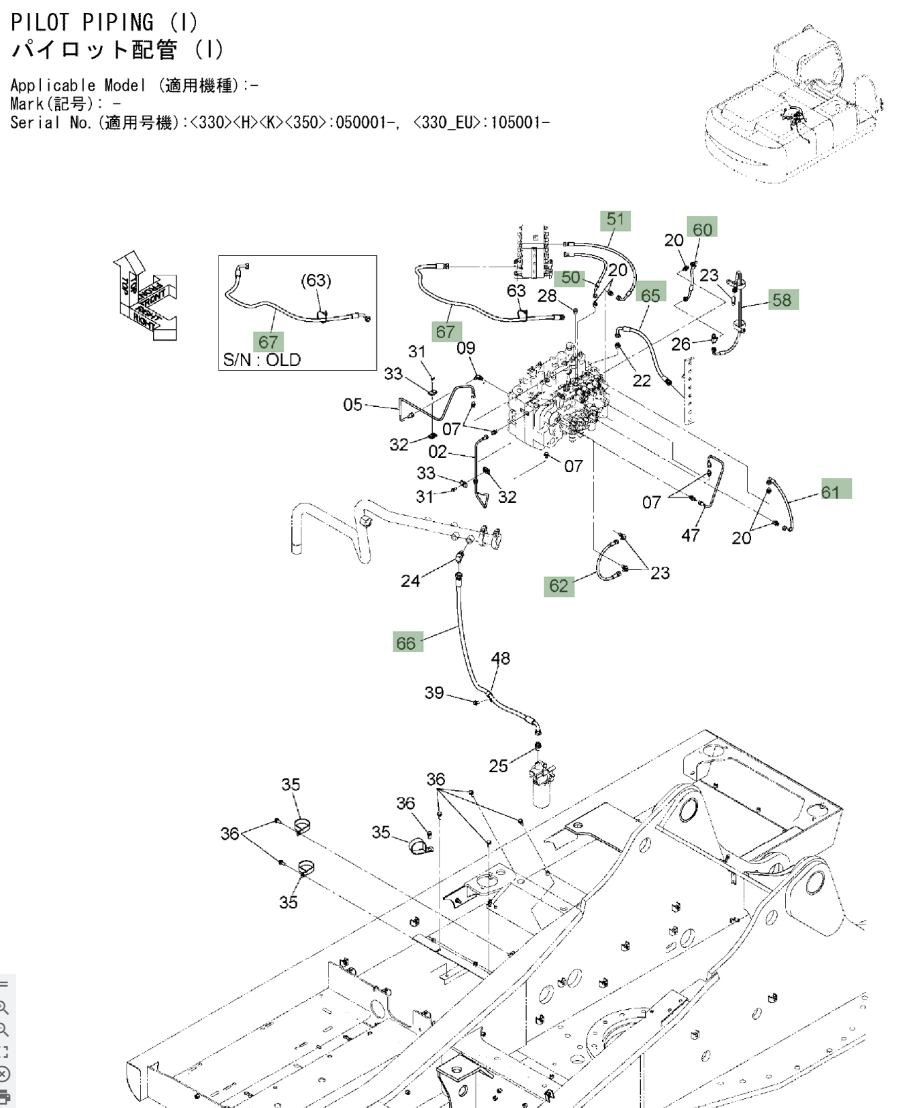

Installation diagram — Pipe No. 50
Locate Pipe No. 50 in the diagram, then confirm part number 4630949 before removing the hose.
Repair specifications
- Part number
- 4630949
- Diagram pipe number
- 50
- Installation route
- 电磁阀~中转接头
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 560 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
