Individual hose record

KHJ18020 Hose Repair Specifications

Excavator · Case · CX380D LC · Pedal

Finished length3,550 mm

Locate this hose

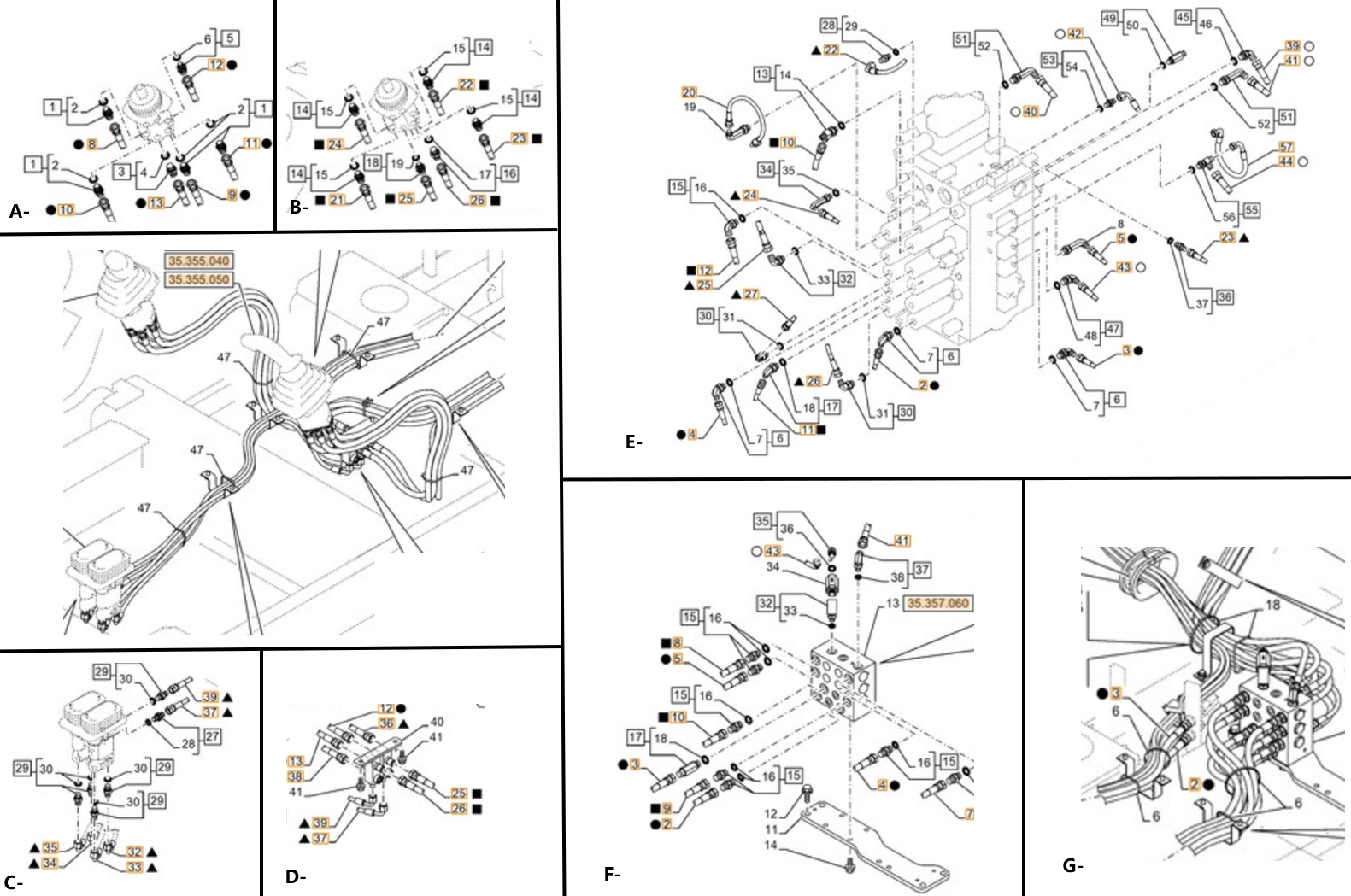

Installation diagram — Pipe No. C33-E3

Locate Pipe No. C33-E3 in the diagram, then confirm part number KHJ18020 before removing the hose.

Part number: KHJ18020
Diagram pipe number: C33-E3
Installation route: 行走踏板~分配阀后左
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,550 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. C37-D37

Installation route: 行走踏板~进回油阀

Length: 1,150 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. C35-E5

Installation route: 行走踏板~分配阀后右

Length: 3,650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
