Individual hose record
4373562 Hose Repair Specifications
Excavator · Hitachi · EX330-5 · Control Lever
Finished length1,850 mm
Locate this hose

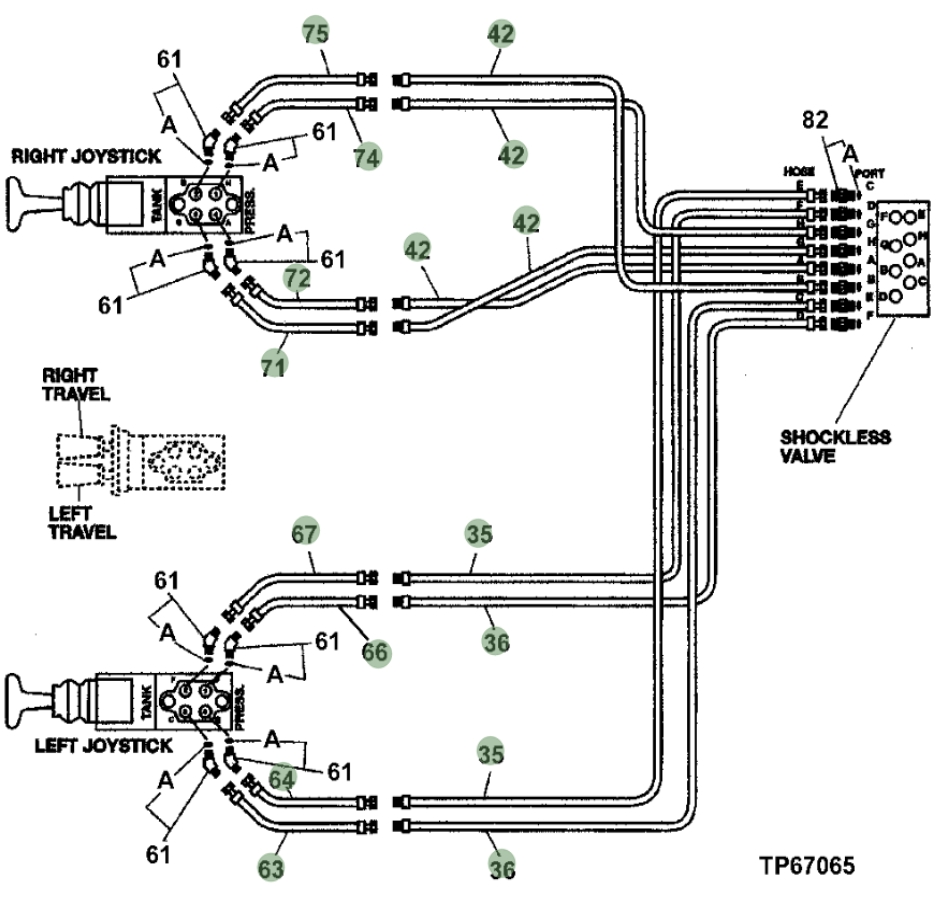

Installation diagram — Pipe No. 72
Locate Pipe No. 72 in the diagram, then confirm part number 4373562 before removing the hose.
Repair specifications
- Part number
- 4373562
- Diagram pipe number
- 72
- Installation route
- 右手柄~中转接头
- Hose specification
- DN10;1SN-06;7Mpa
- Finished length
- 1,850 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
