Individual hose record
4203072 Hose Repair Specifications
Excavator · Hitachi · EX200LC · Control Valve
Finished length1,380 mm
Locate this hose

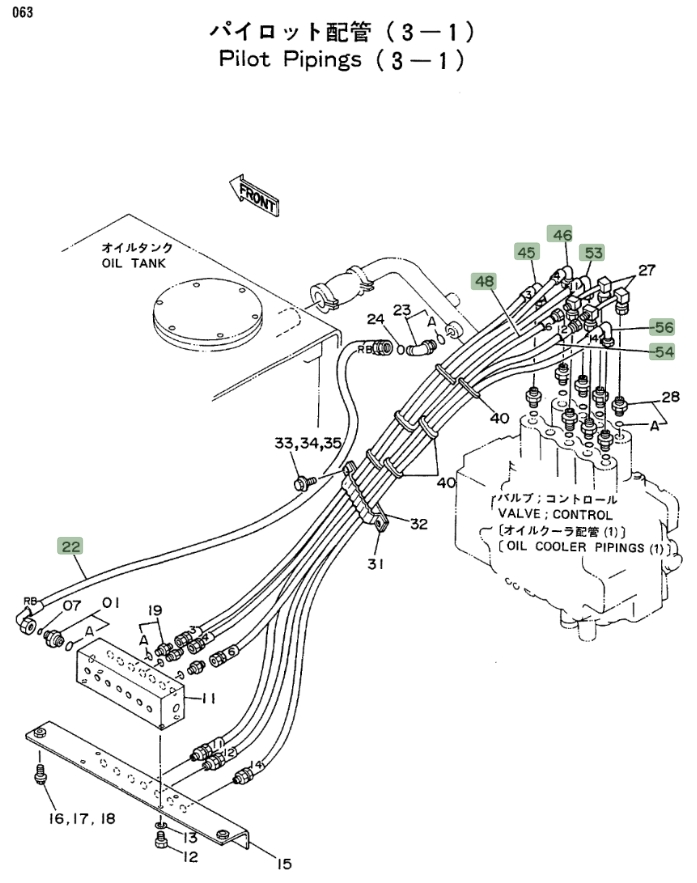

Installation diagram — Pipe No. 53
Locate Pipe No. 53 in the diagram, then confirm part number 4203072 before removing the hose.
Repair specifications
- Part number
- 4203072
- Diagram pipe number
- 53
- Installation route
- 分配阀上~接线板(中转接头)
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 1,380 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制外螺纹37°外锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 550 mm
- Specification
- DN10;2SN-6;27.5MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 1,300 mm
- Specification
- DN10;1层纤维-6;14MPa
- Left fitting
- 美制外螺纹37°外锥
- Right fitting
- 90°美制内螺纹37°内锥
- Length
- 660 mm
- Specification
- DN6;2层纤维-4;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Length
- 1,310 mm
- Specification
- DN10;1层纤维-6;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制外螺纹37°外锥
- Length
- 460 mm
- Specification
- DN6;2层纤维-4;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Length
- 1,090 mm
- Specification
- DN10;1层纤维-6;14MPa
- Left fitting
- 美制外螺纹37°外锥
- Right fitting
- 90°美制内螺纹37°内锥
- Length
- 790 mm
- Specification
- DN6;2层纤维-4;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
