Individual hose record

DS2093024 Hose Repair Specifications

Excavator · Doosan · DX30Z · Pedal

Finished length320 mm

Locate this hose

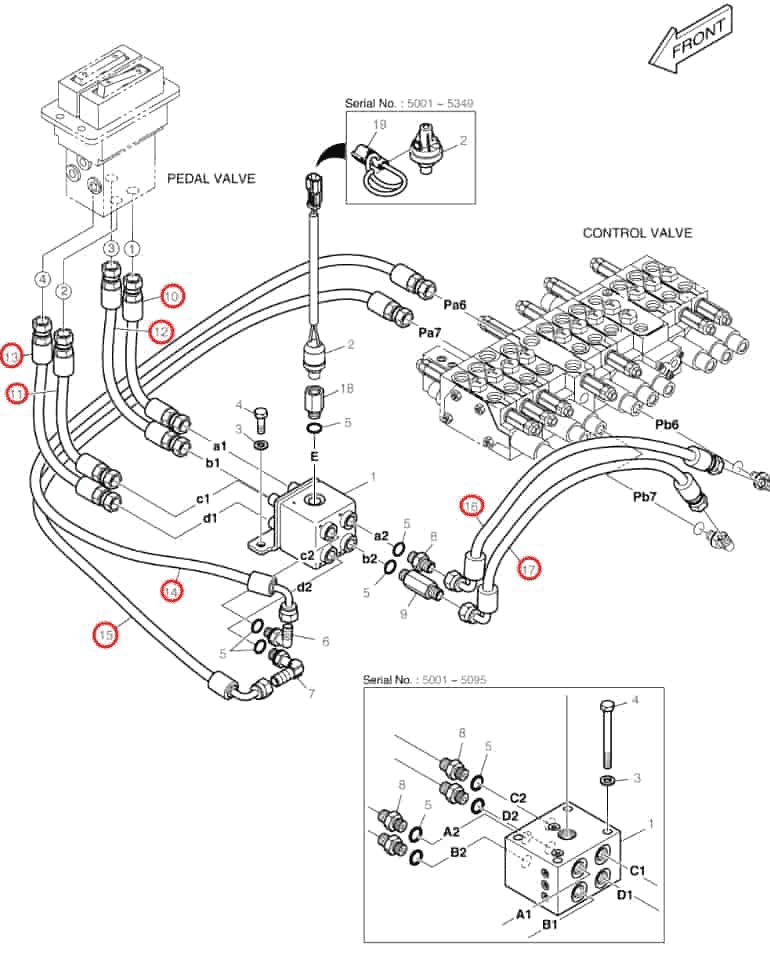

Installation diagram — Pipe No. 17

Locate Pipe No. 17 in the diagram, then confirm part number DS2093024 before removing the hose.

Part number: DS2093024
Diagram pipe number: 17
Installation route: 分配阀PB7口~梭阀(踏板)B2口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 320 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 1

Installation route: 行走踏板1口~分配阀PB6口

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 4

Installation route: 行走踏板4口~分配阀PA7口

Length: 400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 15

Installation route: 分配阀PA7口~梭阀(踏板)D2口

Length: 630 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
