Individual hose record

DS2119152 Hose Repair Specifications

Excavator · Doosan · DX140LCR-3 · Control Valve

Finished length1,550 mm

Locate this hose

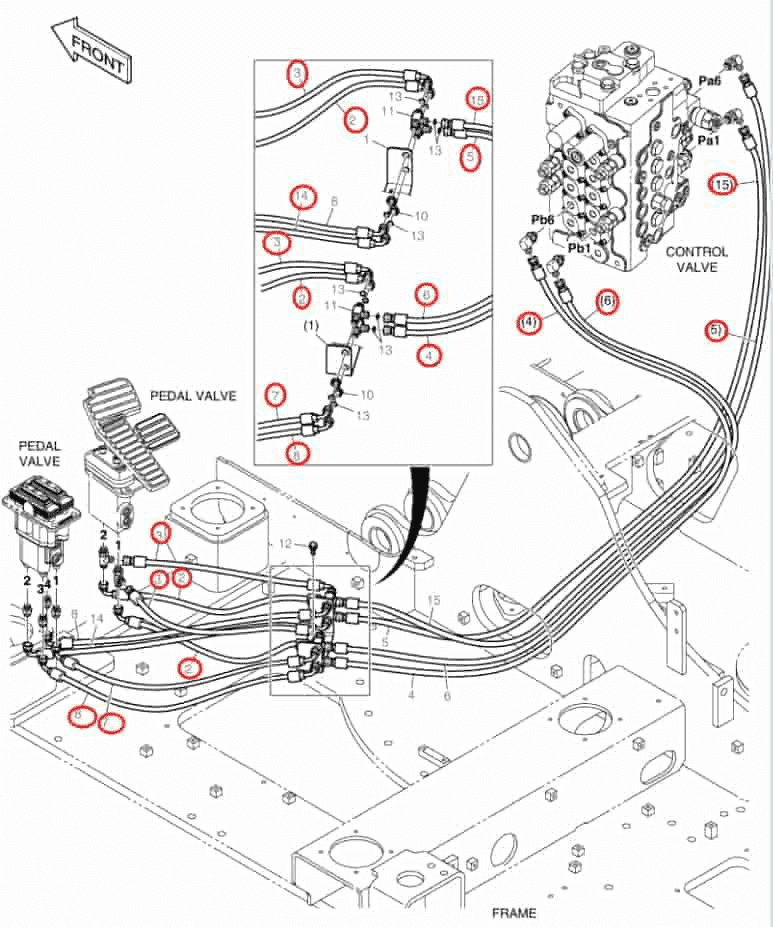

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number DS2119152 before removing the hose.

Part number: DS2119152
Diagram pipe number: 4
Installation route: 分配阀PB6口~过渡接头(驾驶室)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,550 mm
Working pressure: 22.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 201

Installation route: 分配阀PC2口~分配阀PB8口

Length: 590 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 23

Installation route: 分配阀PCC口~分配阀DR口

Length: 240 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 12

Installation route: 分配阀A5口~接线板(大臂下)

Length: 730 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 17

Installation route: 分配阀PA口~回转马达SH口

Length: 1,270 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
