Individual hose record

KHJ2309 Hose Repair Specifications

Excavator · Case · CX300C · Attachments – Breaker

Finished length550 mm

Locate this hose

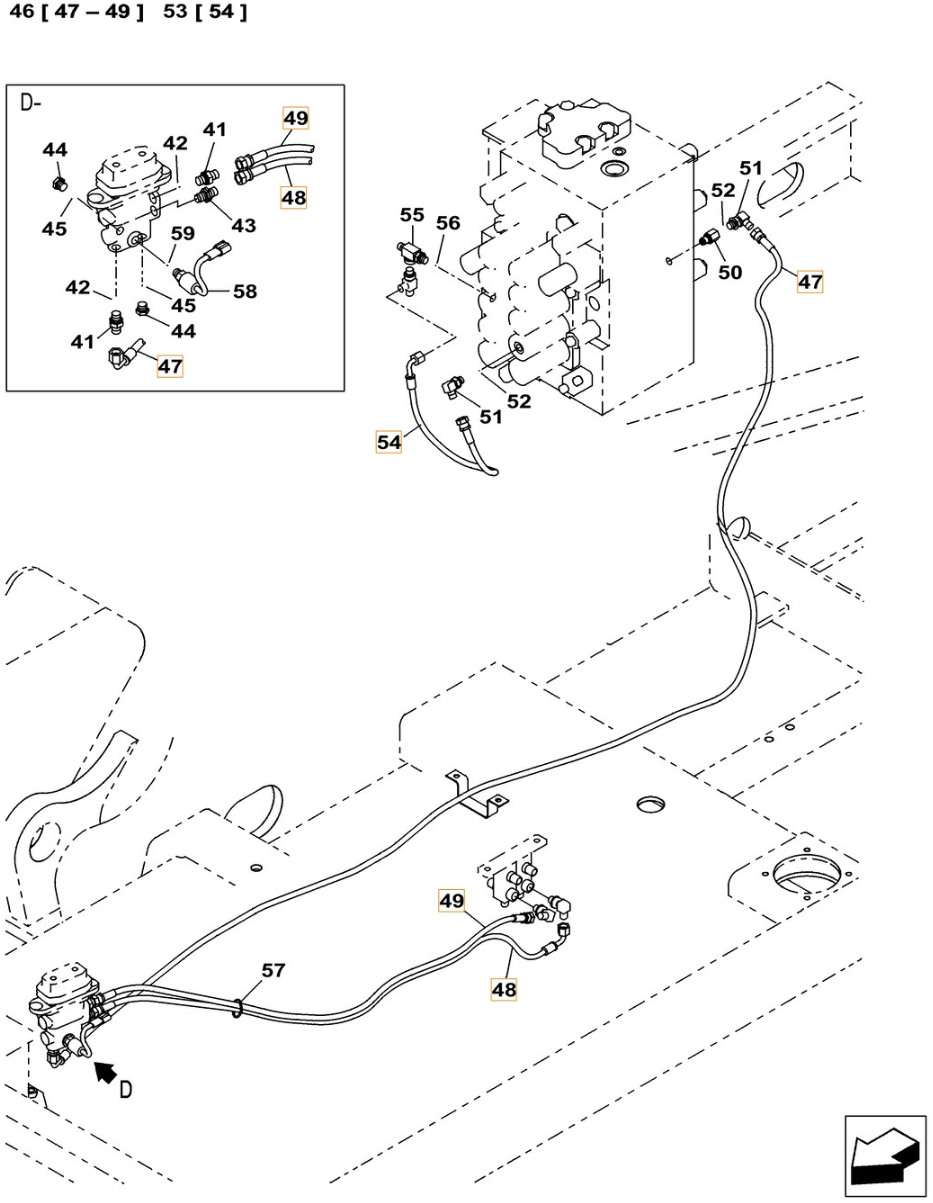

Installation diagram — Pipe No. 54

Locate Pipe No. 54 in the diagram, then confirm part number KHJ2309 before removing the hose.

Case CX300C installation diagram showing hydraulic hose KHJ2309 at Pipe No. 54 — **Case CX300C**Part KHJ2309 · Pipe No. 54Open full-size diagram

Repair specifications

Part number: KHJ2309
Diagram pipe number: 54
Installation route: 分配阀前左~分配阀前右
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 550 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 70

KHJ14650

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 34

KHJ2089

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 15

KBV15980

Installation route: 小臂破碎器截止阀右

Length: 1,900 mm
Specification: DN32;6SH-20;42MPa
Left fitting: 法兰(分体式)-重型
Right fitting: 90°法兰(分体式)-重型

View full repair specifications

Diagram Pipe No. 83

KHJ2036

Installation route: 电磁阀(破碎器踏板)~进回油阀

Length: 750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 85

KHJ18110

Installation route: 分配阀顶~电磁阀(破碎器踏板)

Length: 4,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 6

KBV16090

Installation route: 小臂破碎器截止阀左

Length: 2,150 mm
Specification: DN32;6SH-20;42MPa
Left fitting: 法兰(分体式)-重型
Right fitting: 90°法兰(分体式)-重型

View full repair specifications

Diagram Pipe No. 72

KHJ2085

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 103

KHJ2088

Installation route: 左过渡阀块(破碎器)~右过渡阀块(破碎器)

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
