Individual hose record

4709481 Hose Repair Specifications

Excavator · Hitachi · ZX470-5A · Pedal

Finished length4,500 mm

Locate this hose

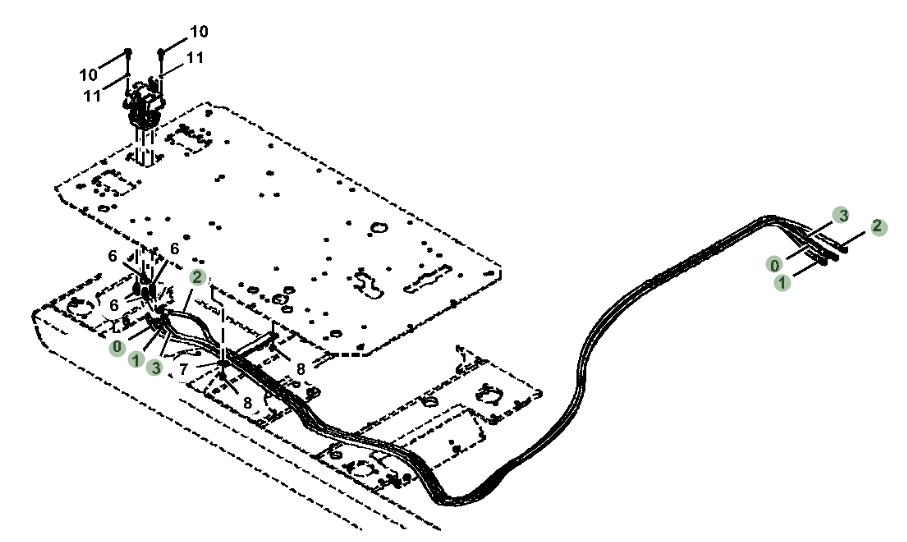

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 4709481 before removing the hose.

Hitachi ZX470-5A installation diagram showing hydraulic hose 4709481 at Pipe No. 3 — Hitachi ZX470-5APart 4709481 · Pipe No. 3Open full-size diagram

Repair specifications

Part number: 4709481
Diagram pipe number: 3
Installation route: 行走踏板~中转接头
Hose specification: DN10;1SN-06;18MPa
Finished length: 4,500 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 0

4709478

Installation route: 行走踏板~中转接头

Length: 4,500 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 1

4709479

Installation route: 行走踏板~中转接头

Length: 4,500 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 9

4709482

Installation route: 行走踏板~进回油阀

Length: 600 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 8

4648087

Installation route: 行走踏板~进回油阀

Length: 430 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 2

4709480

Installation route: 行走踏板~中转接头

Length: 4,600 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
