Individual hose record

4308148 Hose Repair Specifications

Excavator · Hitachi · ZX650LC-3 · Boom Assembly

Finished length900 mm

Locate this hose

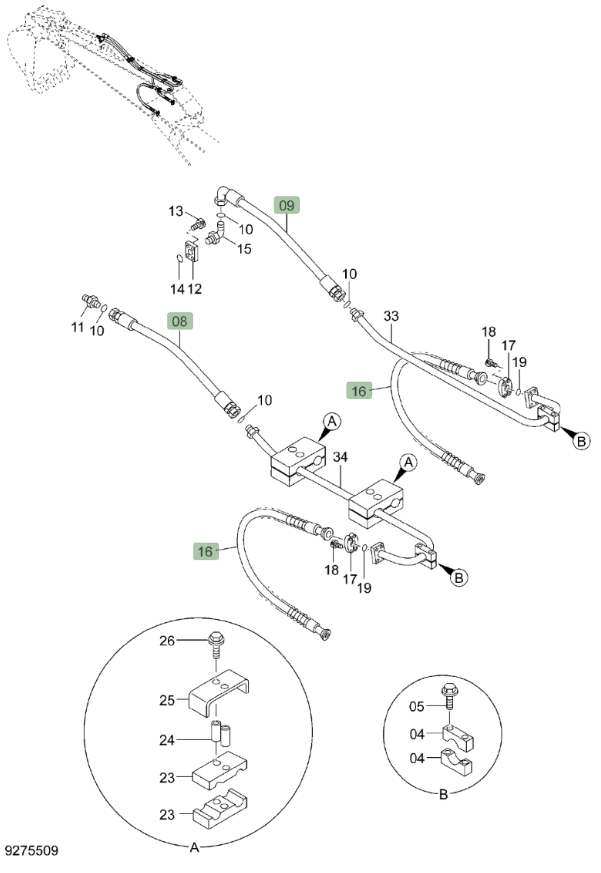

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 4308148 before removing the hose.

Part number: 4308148
Diagram pipe number: 9
Installation route: 铲斗油缸右
Hose specification: DN25;4SH-16;34.5Mpa
Finished length: 900 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 8

Installation route: 铲斗油缸左

Length: 900 mm
Specification: DN25;4SH-16;38.8MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 53

Installation route: 大臂油缸

Diagram Pipe No. 54

Installation route: 大臂油缸

Length: 1,150 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
