- Length
- 560 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
Individual hose record
4453281 Hose Repair Specifications
Excavator · Hitachi · ZXS370F-3 · Solenoid Valve
Finished length1,300 mm
Locate this hose

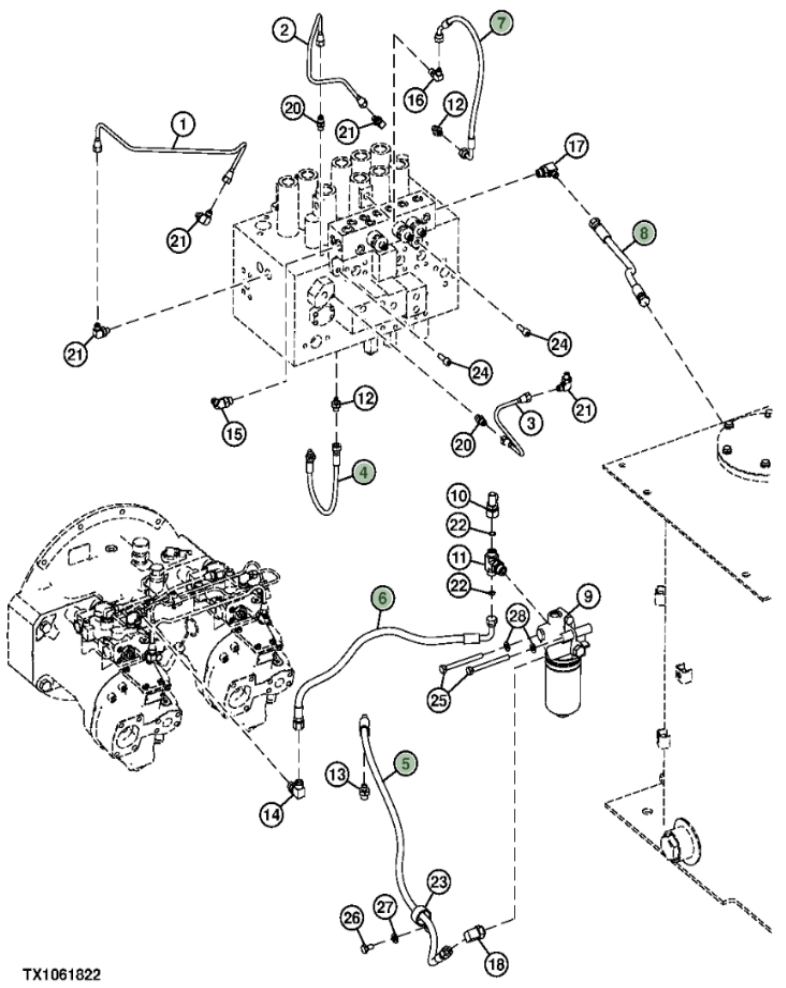

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 4453281 before removing the hose.
Repair specifications
- Part number
- 4453281
- Diagram pipe number
- 5
- Installation route
- 电磁阀~先导滤芯
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,300 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
