Individual hose record
4368703 Hose Repair Specifications
Excavator · Hitachi · EX230LC-5 · Attachments – Breaker
Finished length1,180 mm
Locate this hose

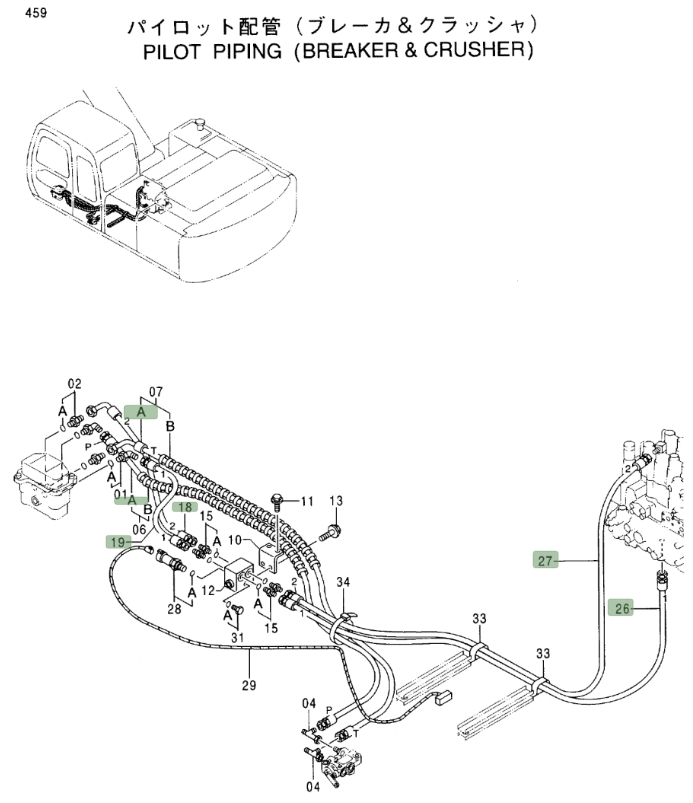

Installation diagram — Pipe No. 6A
Locate Pipe No. 6A in the diagram, then confirm part number 4368703 before removing the hose.
Repair specifications
- Part number
- 4368703
- Diagram pipe number
- 6A
- Installation route
- 破碎器踏板~进回油阀
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,180 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
