Individual hose record
159005A1 Hose Repair Specifications
Excavator · Case · CX130 · Pedal
Finished length3,250 mm
Locate this hose

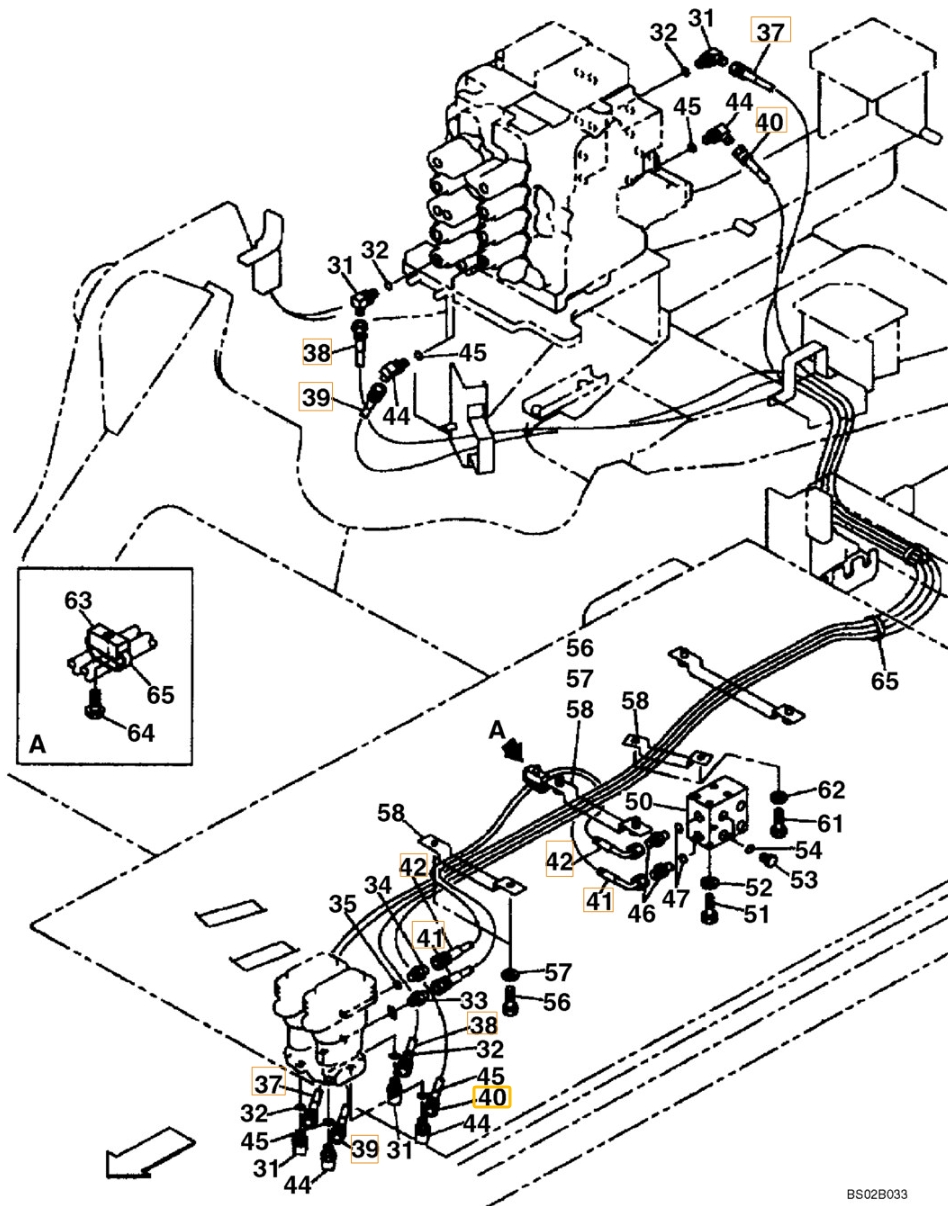

Installation diagram — Pipe No. 39
Locate Pipe No. 39 in the diagram, then confirm part number 159005A1 before removing the hose.
Repair specifications
- Part number
- 159005A1
- Diagram pipe number
- 39
- Installation route
- 行走踏板~分配阀前左
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 3,250 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
