- Length
- 750 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
Individual hose record
4480168 Hose Repair Specifications
Excavator · Hitachi · ZX180W · Control Lever
Finished length750 mm
Locate this hose

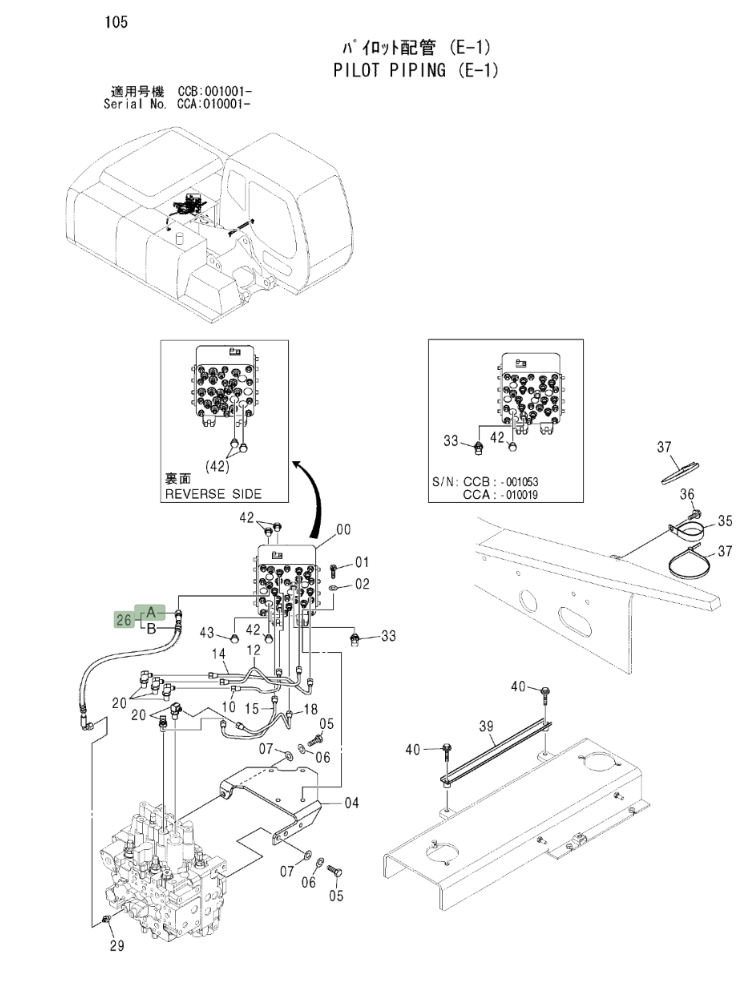

Installation diagram — Pipe No. 26A
Locate Pipe No. 26A in the diagram, then confirm part number 4480168 before removing the hose.
Repair specifications
- Part number
- 4480168
- Diagram pipe number
- 26A
- Installation route
- 中转接头~分配阀左
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 750 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
