Individual hose record

167352A1 Hose Repair Specifications

Excavator · Case · CX700B · Control Valve

Finished length2,500 mm

Locate this hose

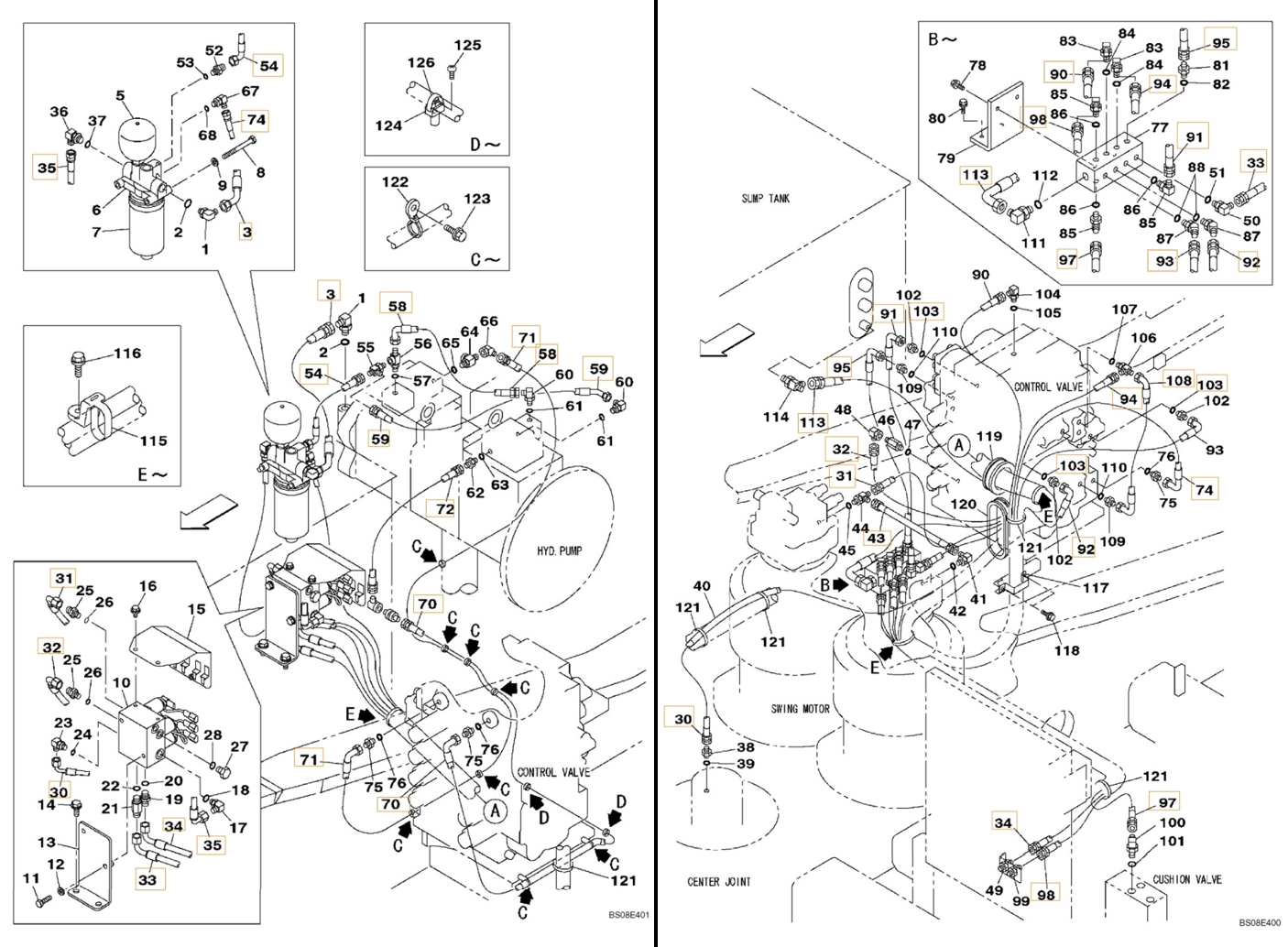

Installation diagram — Pipe No. 32

Locate Pipe No. 32 in the diagram, then confirm part number 167352A1 before removing the hose.

Part number: 167352A1
Diagram pipe number: 32
Installation route: 分配阀右~电磁阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,500 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 92

Installation route: 分配阀左~回转马达(左)过渡阀块

Length: 1,700 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 94

Installation route: 分配阀左~回转马达(左)过渡阀块

Length: 2,550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 90

Installation route: 分配阀顶~回转马达(左)过渡阀块

Length: 2,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 93

Installation route: 分配阀左~回转马达(左)过渡阀块

Length: 1,750 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
