Individual hose record
4445718 Hose Repair Specifications
Excavator · Hitachi · ZX160LC · Control Valve
Finished length1,150 mm
Locate this hose

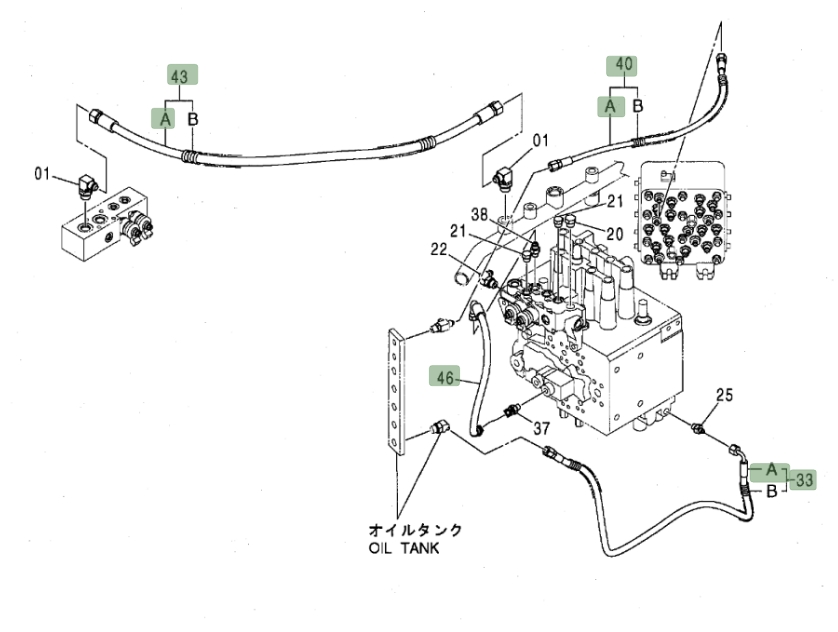

Installation diagram — Pipe No. 33A
Locate Pipe No. 33A in the diagram, then confirm part number 4445718 before removing the hose.
Repair specifications
- Part number
- 4445718
- Diagram pipe number
- 33A
- Installation route
- 分配阀下~液压油箱
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 1,150 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
