Diagram Pipe No. 32A
4304403
Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀
- Length
- 680 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Individual hose record
4370728 Hose Repair Specifications
Excavator · Hitachi · EX200LC-5 · Attachments – Lock Valve
Finished length2,600 mm
Locate this hose

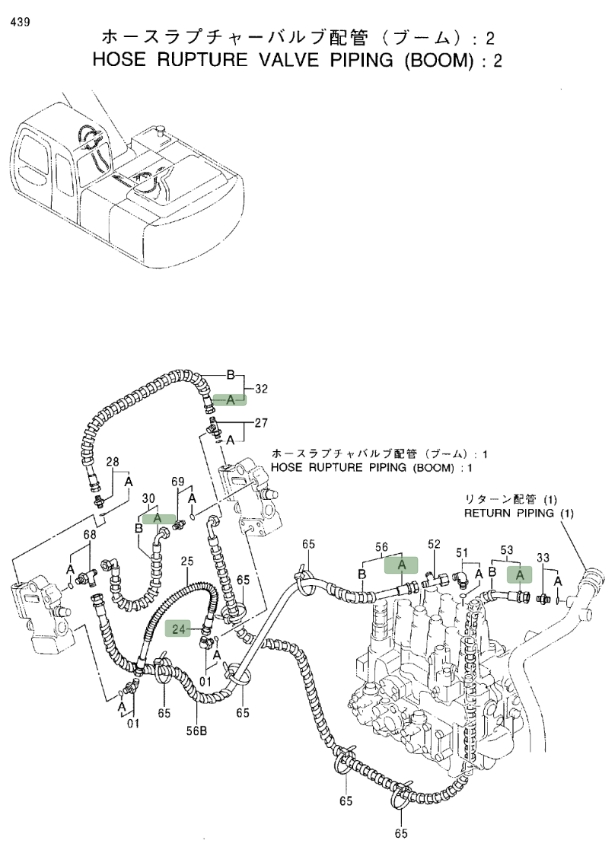

Installation diagram — Pipe No. 56A
Locate Pipe No. 56A in the diagram, then confirm part number 4370728 before removing the hose.
Repair specifications
- Part number
- 4370728
- Diagram pipe number
- 56A
- Installation route
- 左大臂油缸锁止阀~分配阀上右
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,600 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
Diagram Pipe No. 24
4252875
Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀
- Length
- 500 mm
- Specification
- DN6;2SN-4;68.5MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
