Individual hose record
4224415 Hose Repair Specifications
Excavator · Hitachi · EX160WD · Solenoid Valve
Finished length300 mm
Locate this hose

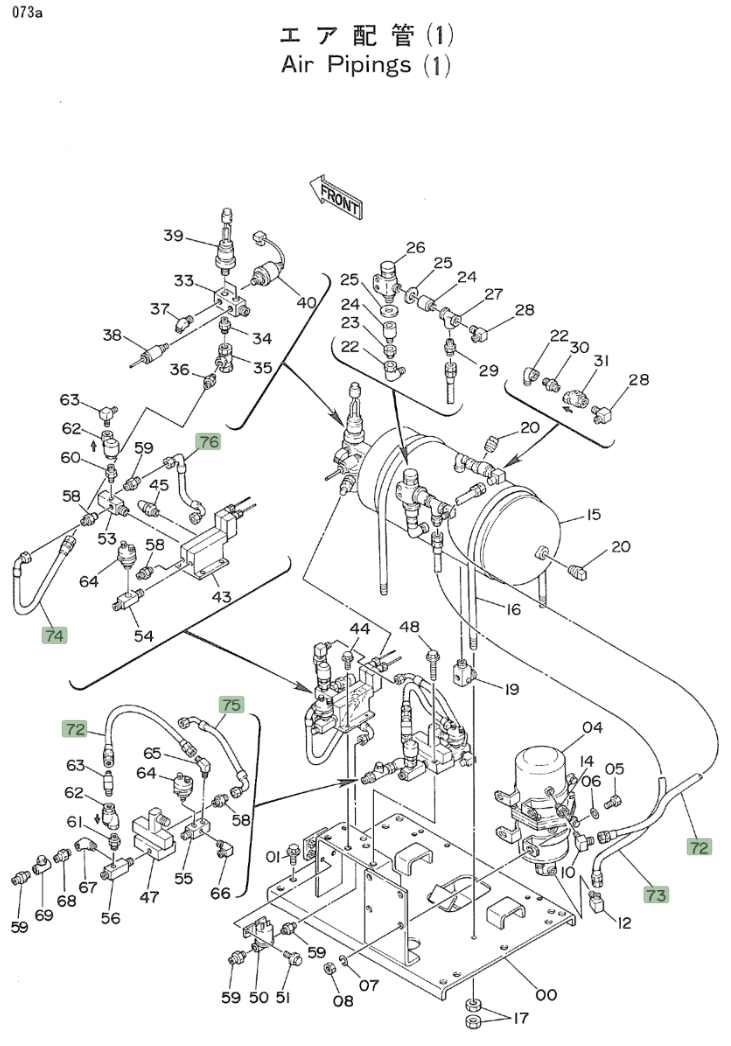

Installation diagram — Pipe No. 72
Locate Pipe No. 72 in the diagram, then confirm part number 4224415 before removing the hose.
Repair specifications
- Part number
- 4224415
- Diagram pipe number
- 72
- Installation route
- 电磁阀(贮气罐)~压力开关阀
- Hose specification
- DN10;4层纤维-6;3.5MPa
- Finished length
- 300 mm
- Working pressure
- 3.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
