Individual hose record
KHJ2068 Hose Repair Specifications
Excavator · Case · CX75SR · Control Lever
Finished length2,250 mm
Locate this hose

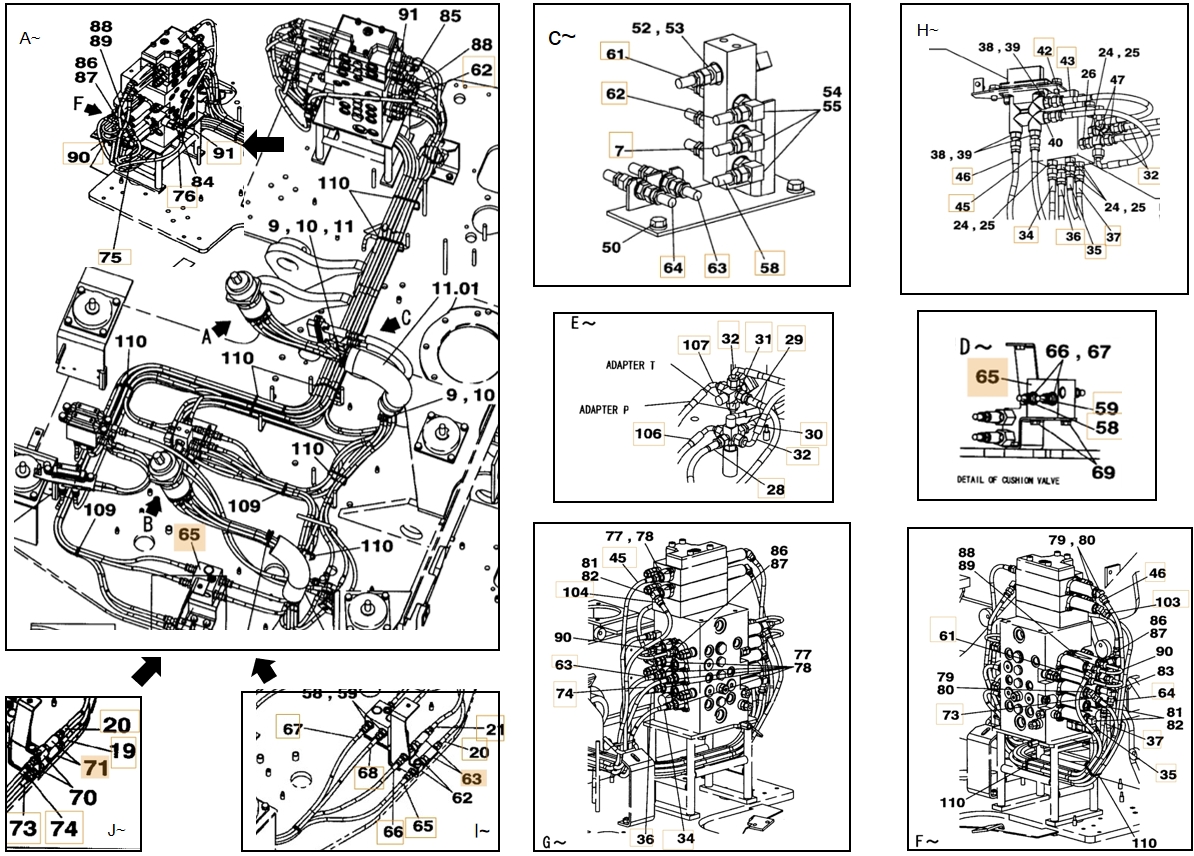

Installation diagram — Pipe No. 64
Locate Pipe No. 64 in the diagram, then confirm part number KHJ2068 before removing the hose.
Repair specifications
- Part number
- KHJ2068
- Diagram pipe number
- 64
- Installation route
- 中转接头~分配阀前
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,250 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
