Individual hose record
4275675 Hose Repair Specifications
Excavator · Hitachi · ZX210LC-6N · Attachments – Breaker
Finished length1,100 mm
Locate this hose

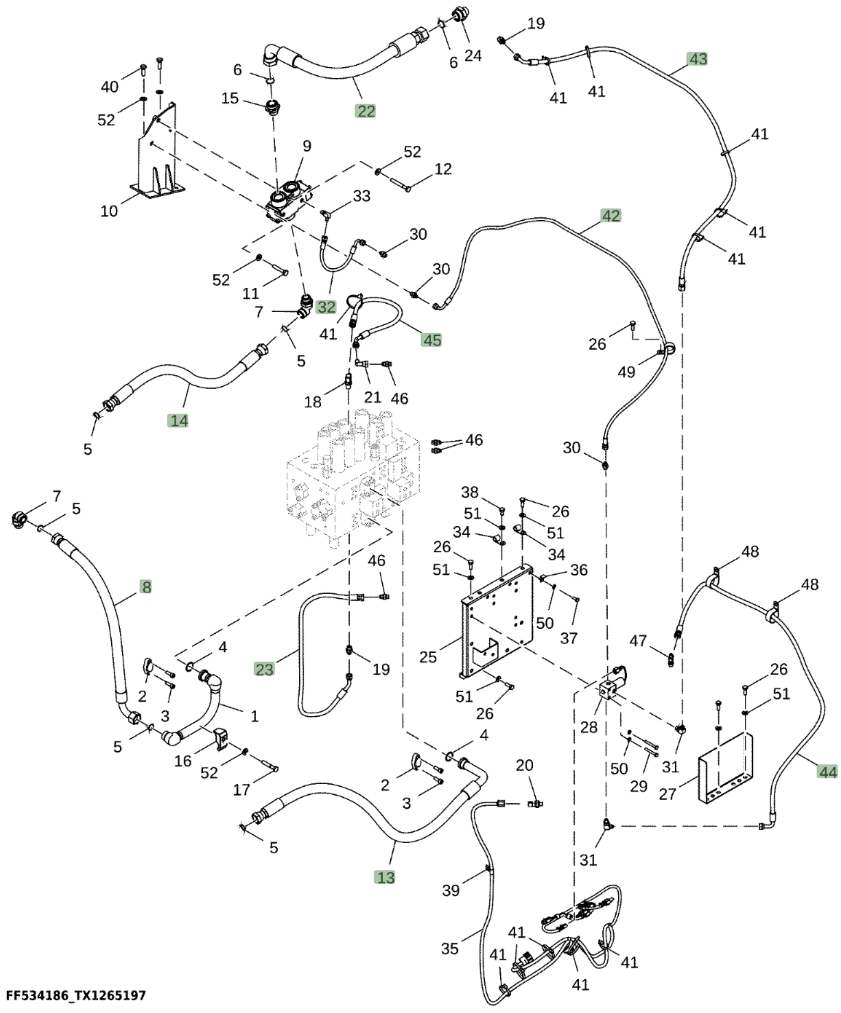

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 4275675 before removing the hose.
Repair specifications
- Part number
- 4275675
- Diagram pipe number
- 14
- Installation route
- 大臂(破碎器)~过渡阀块(破碎器)
- Hose specification
- DN25;4SH-16;34.5Mpa
- Finished length
- 1,100 mm
- Working pressure
- 34.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
