Individual hose record
4203038 Hose Repair Specifications
Excavator · Hitachi · EX100 · Swing Motor
Finished length1,400 mm
Locate this hose

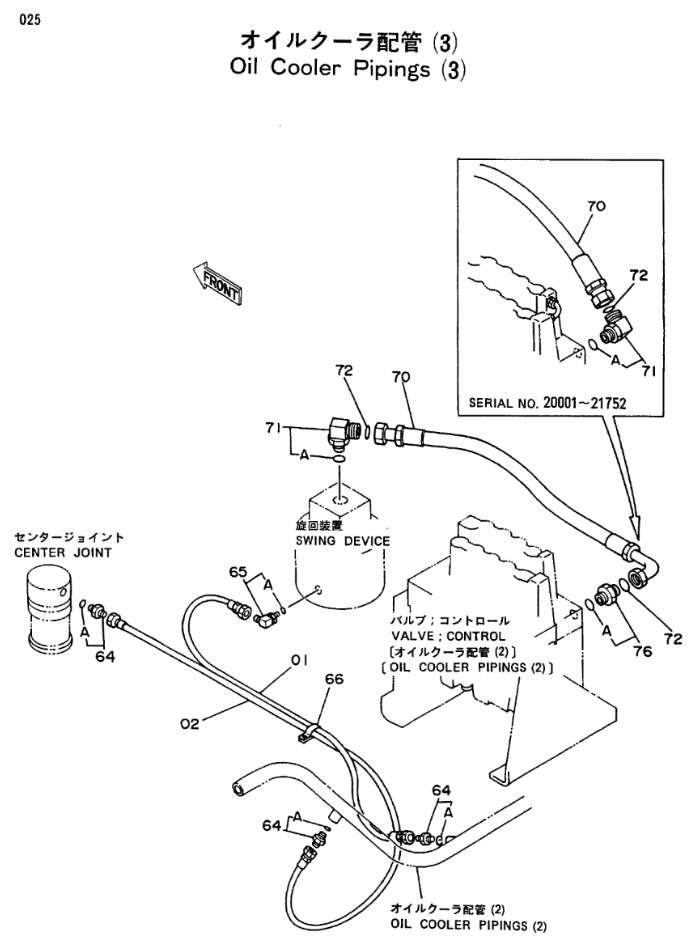

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 4203038 before removing the hose.
Repair specifications
- Part number
- 4203038
- Diagram pipe number
- 1
- Installation route
- Swing motor → return steel line (hydraulic tank)Original Chinese: 回转马达~回油铁管(液压油箱)
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 1,400 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
