Individual hose record
4712899 Hose Repair Specifications
Excavator · Hitachi · ZX670LC-5G · Control Lever
Finished length1,800 mm
Locate this hose

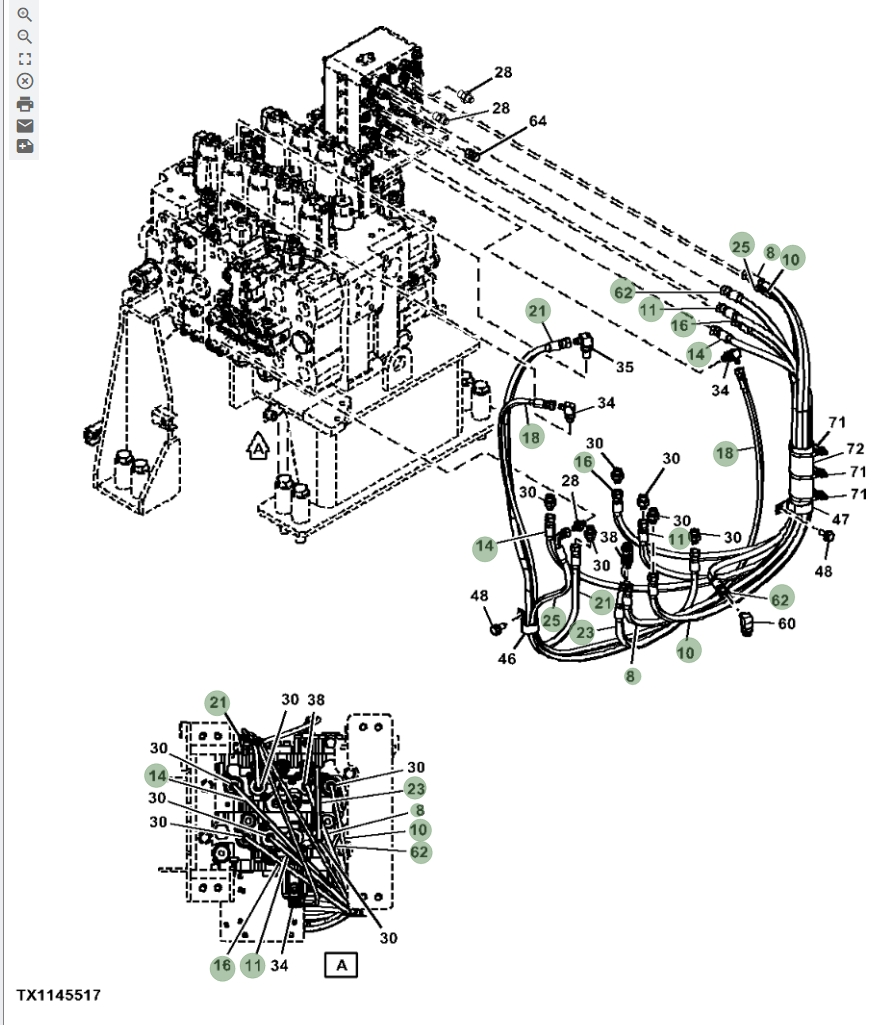

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 4712899 before removing the hose.
Repair specifications
- Part number
- 4712899
- Diagram pipe number
- 18
- Installation route
- 中转接头~分配阀上左
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,800 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
