Individual hose record

4262277 Hose Repair Specifications

Excavator · Hitachi · ZX35U-5N · Attachments

Finished length1,700 mm

Locate this hose

Installation diagram — Pipe No. 40

Locate Pipe No. 40 in the diagram, then confirm part number 4262277 before removing the hose.

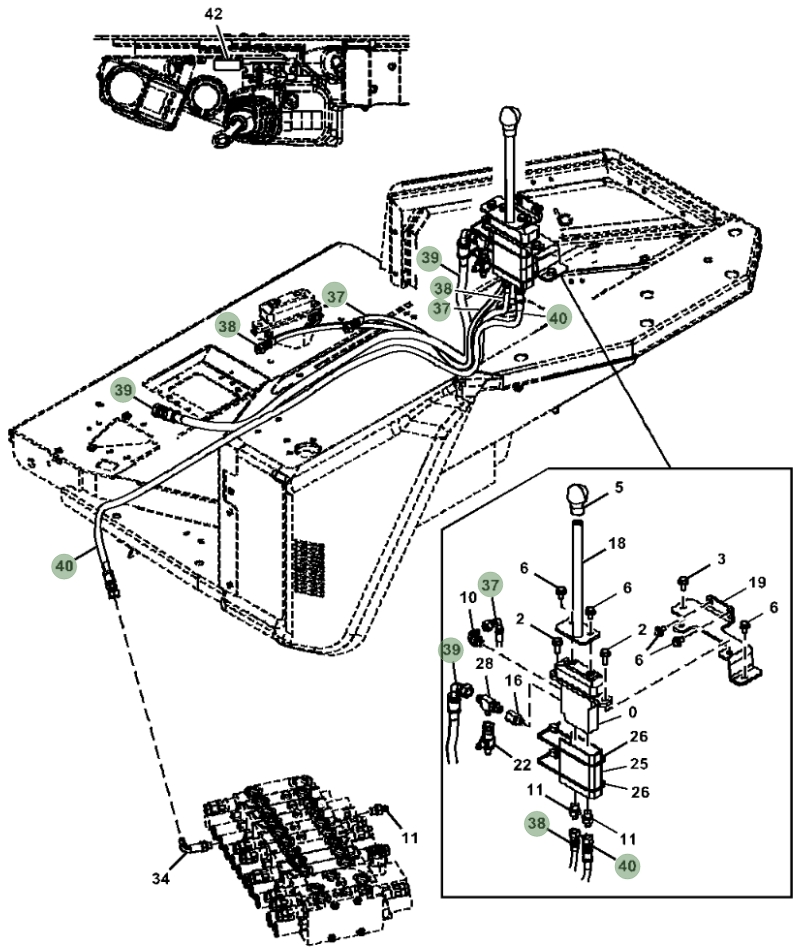

Hitachi ZX35U-5N installation diagram showing hydraulic hose 4262277 at Pipe No. 40 — Hitachi ZX35U-5NPart 4262277 · Pipe No. 40Open full-size diagram

Repair specifications

Part number: 4262277
Diagram pipe number: 40
Installation route: 推土铲手柄~分配阀左
Hose specification: DN6;1SN-04;7MPa
Finished length: 1,700 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
