Individual hose record
152767A1 Hose Repair Specifications
Excavator · Case · CX800B-8 LC ME · Control Lever
Finished length2,350 mm
Locate this hose

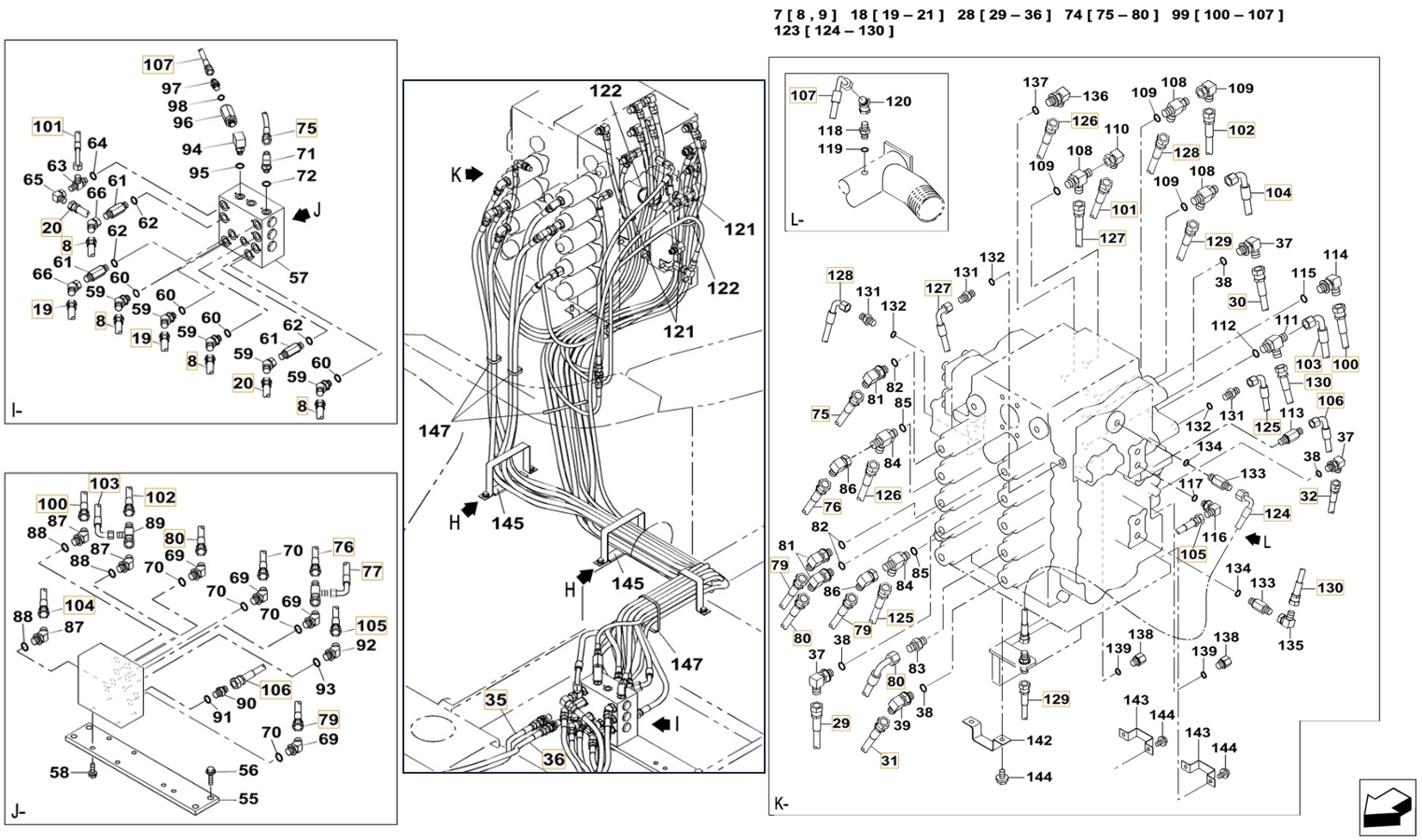

Installation diagram — Pipe No. 79
Locate Pipe No. 79 in the diagram, then confirm part number 152767A1 before removing the hose.
Repair specifications
- Part number
- 152767A1
- Diagram pipe number
- 79
- Installation route
- 中转接头~分配阀前右
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,350 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
