Individual hose record

4674819 Hose Repair Specifications

Excavator · Hitachi · ZX370FLC-LL-6N · Control Valve

Finished length430 mm

Locate this hose

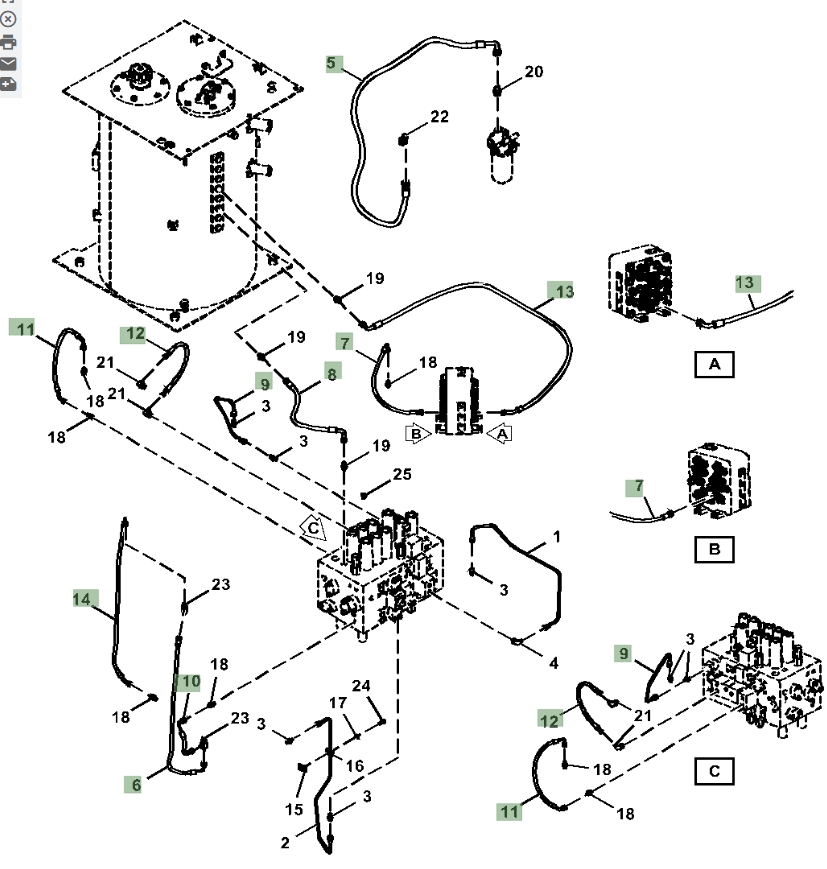

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 4674819 before removing the hose.

Hitachi ZX370FLC-LL-6N installation diagram showing hydraulic hose 4674819 at Pipe No. 9 — Hitachi ZX370FLC-LL-6NPart 4674819 · Pipe No. 9Open full-size diagram

Repair specifications

Part number: 4674819
Diagram pipe number: 9
Installation route: 分配阀右~电磁阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 430 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

4635267

Installation route: 分配阀上~液压油箱

Length: 600 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 10

4656805

Installation route: 分配阀下~分配阀前

Length: 250 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 45°美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 6

4630946

Installation route: 分配阀下~电磁阀

Length: 850 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 11

4632041

Installation route: 分配阀右~电磁阀

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90°美制内螺纹74°内锥
Right fitting: 45°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 12

4656809

Installation route: 分配阀右~电磁阀

Length: 410 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 11

4643029

Installation route: 分配阀上~分配阀右

Length: 550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 45°美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications
