Individual hose record
4398302 Hose Repair Specifications
Excavator · Hitachi · EX450LC-5 · Solenoid Valve
Finished length1,700 mm
Locate this hose

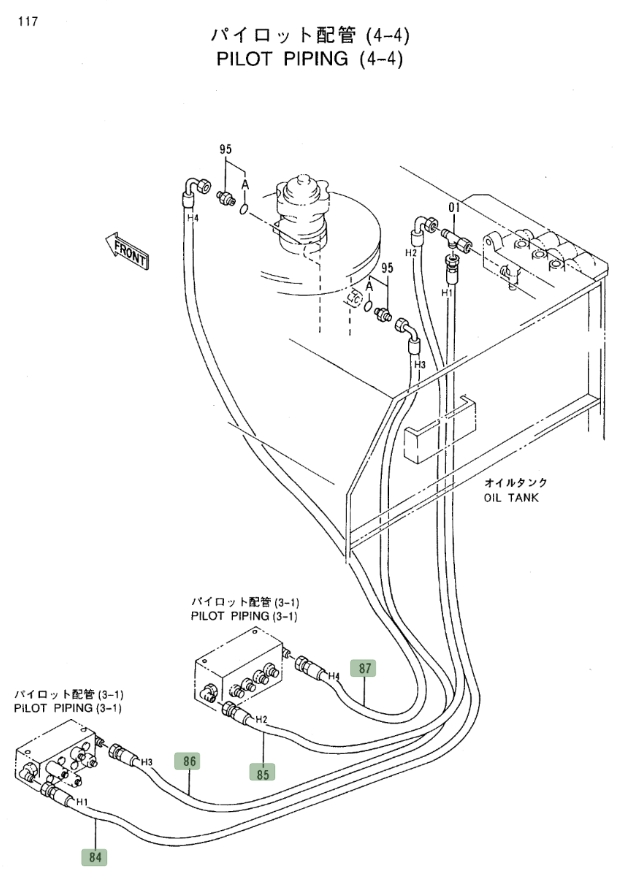

Installation diagram — Pipe No. 84
Locate Pipe No. 84 in the diagram, then confirm part number 4398302 before removing the hose.
Repair specifications
- Part number
- 4398302
- Diagram pipe number
- 84
- Installation route
- 电磁阀~中转接头(手柄)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,700 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
