Individual hose record

4607990 Hose Repair Specifications

Excavator · Hitachi · ZX130-6N · Pedal

Finished length3,150 mm

Locate this hose

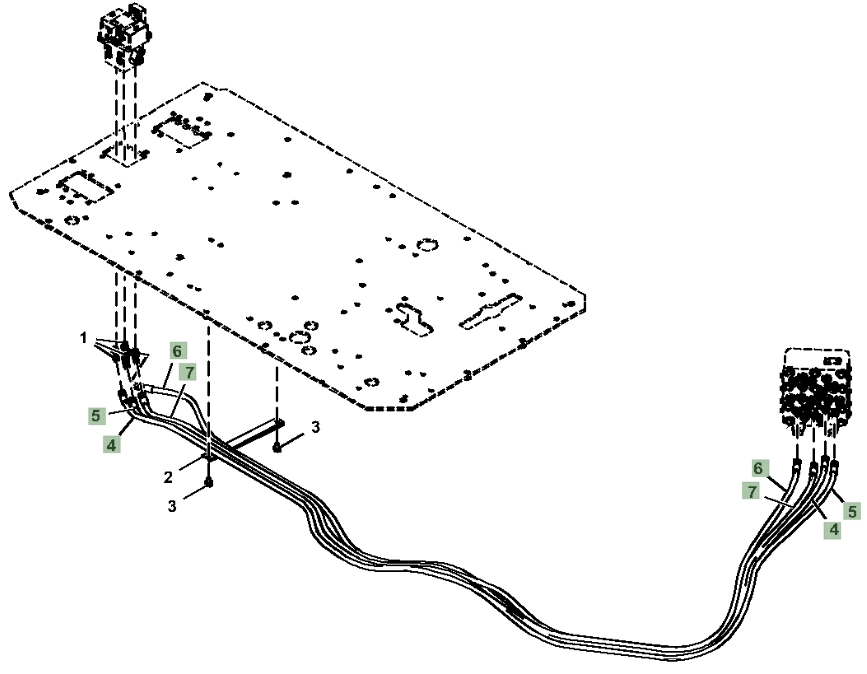

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 4607990 before removing the hose.

Hitachi ZX130-6N installation diagram showing hydraulic hose 4607990 at Pipe No. 4 — Hitachi ZX130-6NPart 4607990 · Pipe No. 4Open full-size diagram

Repair specifications

Part number: 4607990
Diagram pipe number: 4
Installation route: 行走踏板~中转接头
Hose specification: DN10;1SN-06;18.0MPa
Finished length: 3,150 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 6

4484016

Installation route: 行走踏板~中转接头

Length: 3,150 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 6

4459263

Installation route: 行走踏板~中转接头

Length: 3,050 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 5

4444722

Installation route: 行走踏板~中转接头

Length: 3,150 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 7

4431844

Installation route: 行走踏板~中转接头

Length: 3,000 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 4

4431841

Installation route: 行走踏板~中转接头

Length: 3,150 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
