Individual hose record
4316573 Hose Repair Specifications
Excavator · Hitachi · EX400LC-3C · Swivel Joint
Finished length1,550 mm
Locate this hose

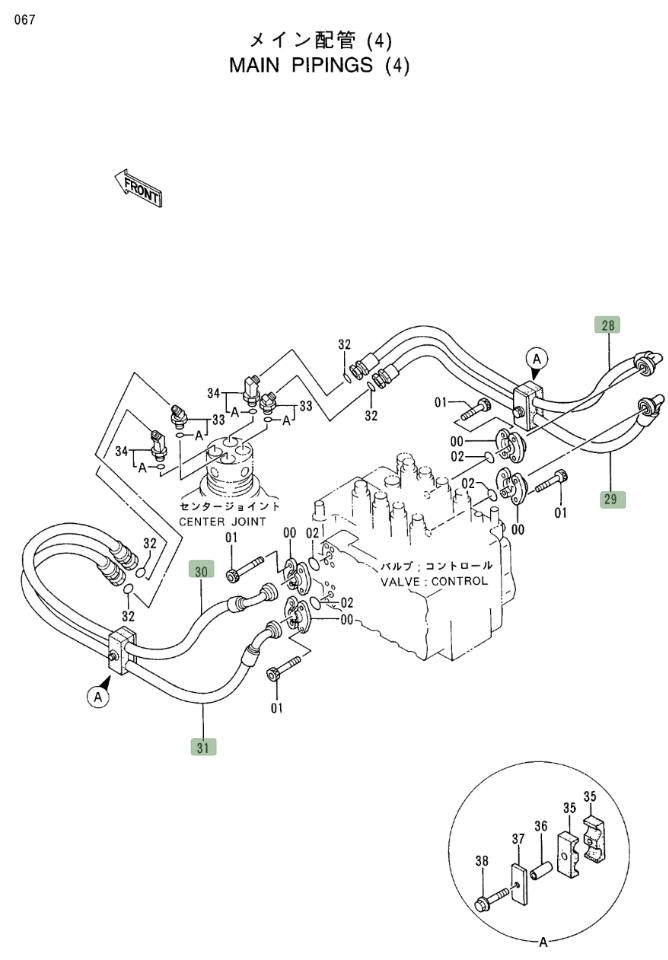

Installation diagram — Pipe No. 29
Locate Pipe No. 29 in the diagram, then confirm part number 4316573 before removing the hose.
Repair specifications
- Part number
- 4316573
- Diagram pipe number
- 29
- Installation route
- 回转接头~分配阀右下
- Hose specification
- DN25;4SH-16;38.8MPa
- Finished length
- 1,550 mm
- Working pressure
- 38.8 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45° heavy-series flangeOriginal Chinese: 45°法兰-重型
- Quantity
- 1
