Individual hose record

KHJ15490 Hose Repair Specifications

Excavator · Case · CX160C · Control Lever

Finished length1,350 mm

Locate this hose

Installation diagram — Pipe No. 76

Locate Pipe No. 76 in the diagram, then confirm part number KHJ15490 before removing the hose.

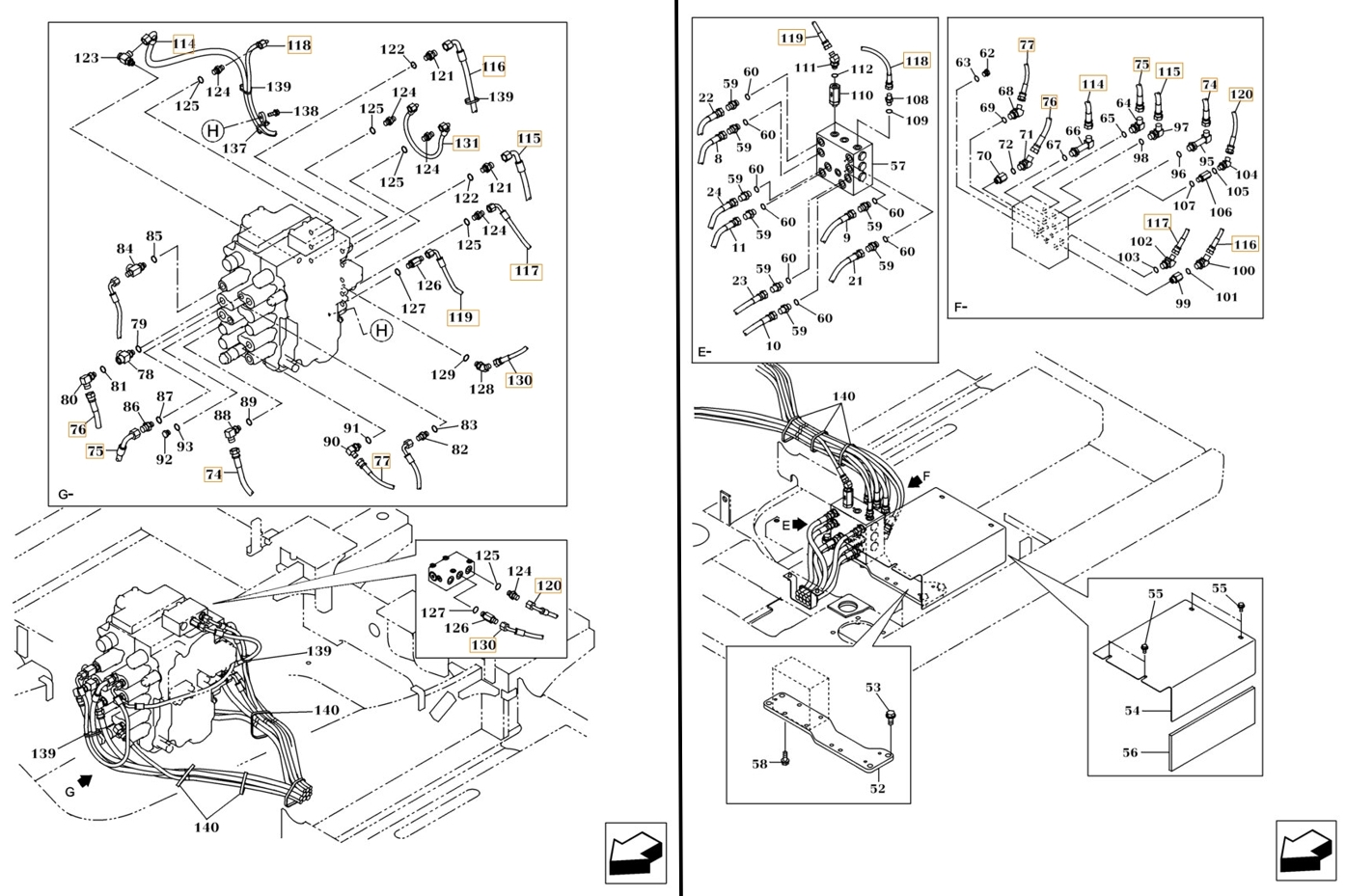

Case CX160C installation diagram showing hydraulic hose KHJ15490 at Pipe No. 76 — **Case CX160C**Part KHJ15490 · Pipe No. 76Open full-size diagram

Repair specifications

Part number: KHJ15490
Diagram pipe number: 76
Installation route: 中转接头~分配阀前
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,350 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 24

159217A1

Installation route: 左手柄~中转接头

Length: 1,850 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 77

KHJ2050

Installation route: 中转接头~分配阀前

Length: 1,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 9

159211A1

Installation route: 右手柄~中转接头

Length: 2,000 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 74

KHJ13810

Installation route: 中转接头~分配阀前

Length: 1,150 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 8

168025A1

Installation route: 右手柄~中转接头

Length: 2,150 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 12

159213A1

Installation route: 右手柄~进回油阀

Length: 1,150 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 25

159213A1

Installation route: 左手柄~进回油阀

Length: 1,150 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 116

KHJ11570

Installation route: 中转接头~分配阀后

Length: 1,300 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
