Individual hose record

4213802 Hose Repair Specifications

Excavator · Hitachi · EX300LC · Solenoid Valve

Finished length1,250 mm

Locate this hose

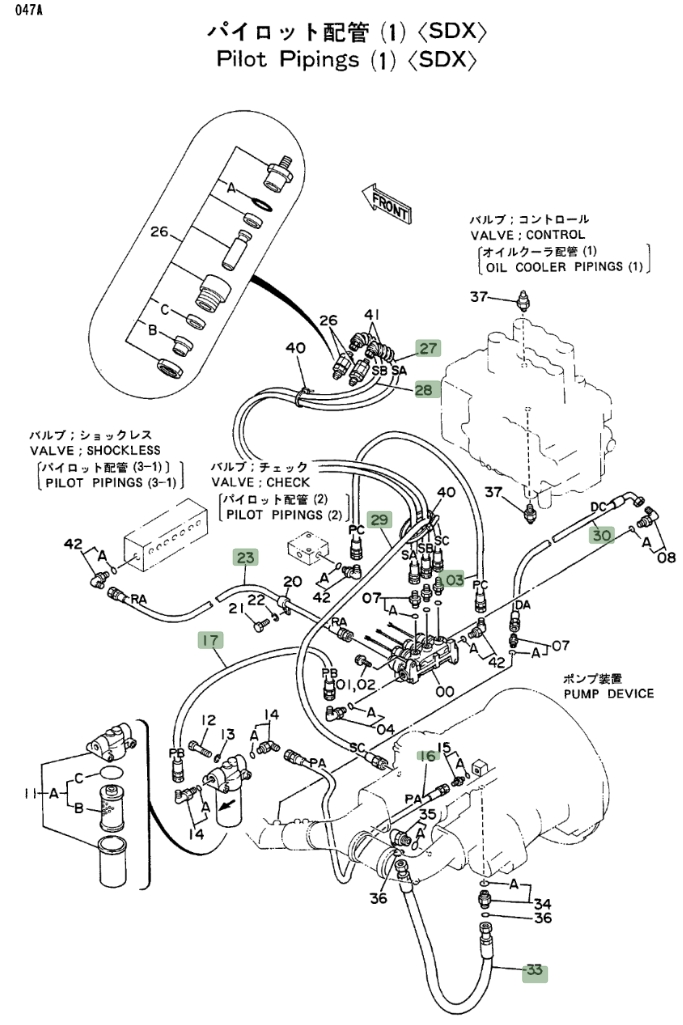

Installation diagram — Pipe No. 23

Locate Pipe No. 23 in the diagram, then confirm part number 4213802 before removing the hose.

Hitachi EX300LC installation diagram showing hydraulic hose 4213802 at Pipe No. 23 — Hitachi EX300LCPart 4213802 · Pipe No. 23Open full-size diagram

Repair specifications

Part number: 4213802
Diagram pipe number: 23
Installation route: 电磁阀~中转接头
Hose specification: DN12;1层纤维-8;10.5MPa
Finished length: 1,250 mm
Working pressure: 10.5 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
