Individual hose record

4668866 Hose Repair Specifications

Excavator · Hitachi · ZXS370F-3 · Hydraulic Tank

Finished length2,050 mm

Locate this hose

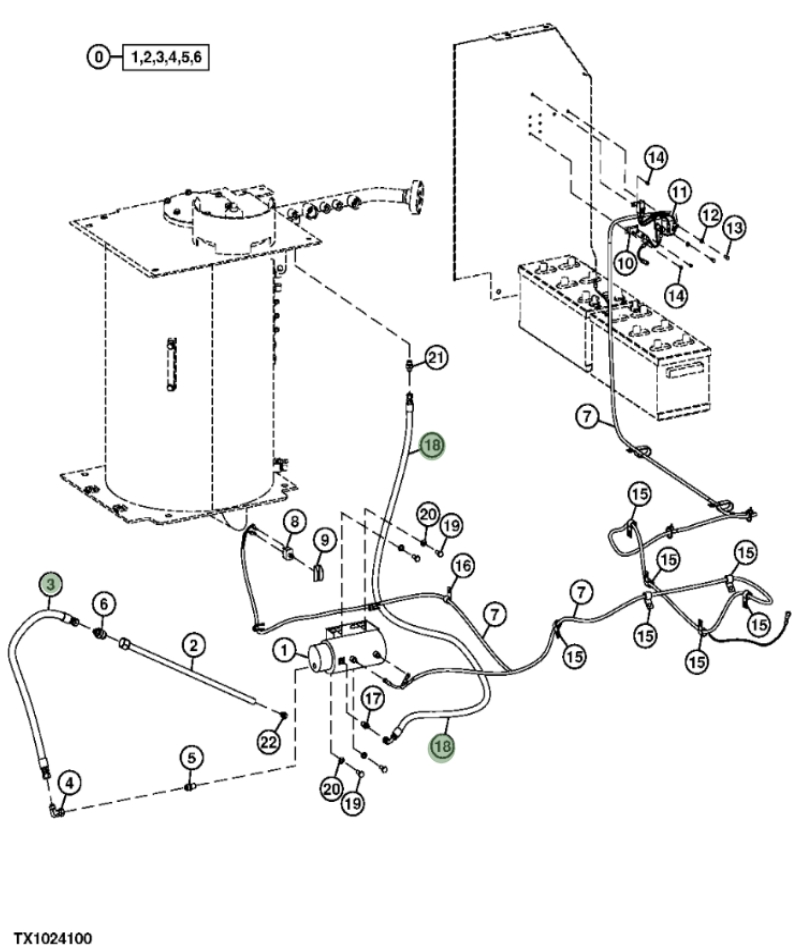

Installation diagram — Pipe No. 18

Locate Pipe No. 18 in the diagram, then confirm part number 4668866 before removing the hose.

Hitachi ZXS370F-3 installation diagram showing hydraulic hose 4668866 at Pipe No. 18 — Hitachi ZXS370F-3Part 4668866 · Pipe No. 18Open full-size diagram

Repair specifications

Part number: 4668866
Diagram pipe number: 18
Installation route: 回油铁管(液压油箱)~供油泵
Hose specification: DN10;1SN-6;18MPa
Finished length: 2,050 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1
