Individual hose record
730503001420 Hose Repair Specifications
Excavator · Sunward · SWE365F · Attachments – Breaker
Finished length720 mm
Locate this hose

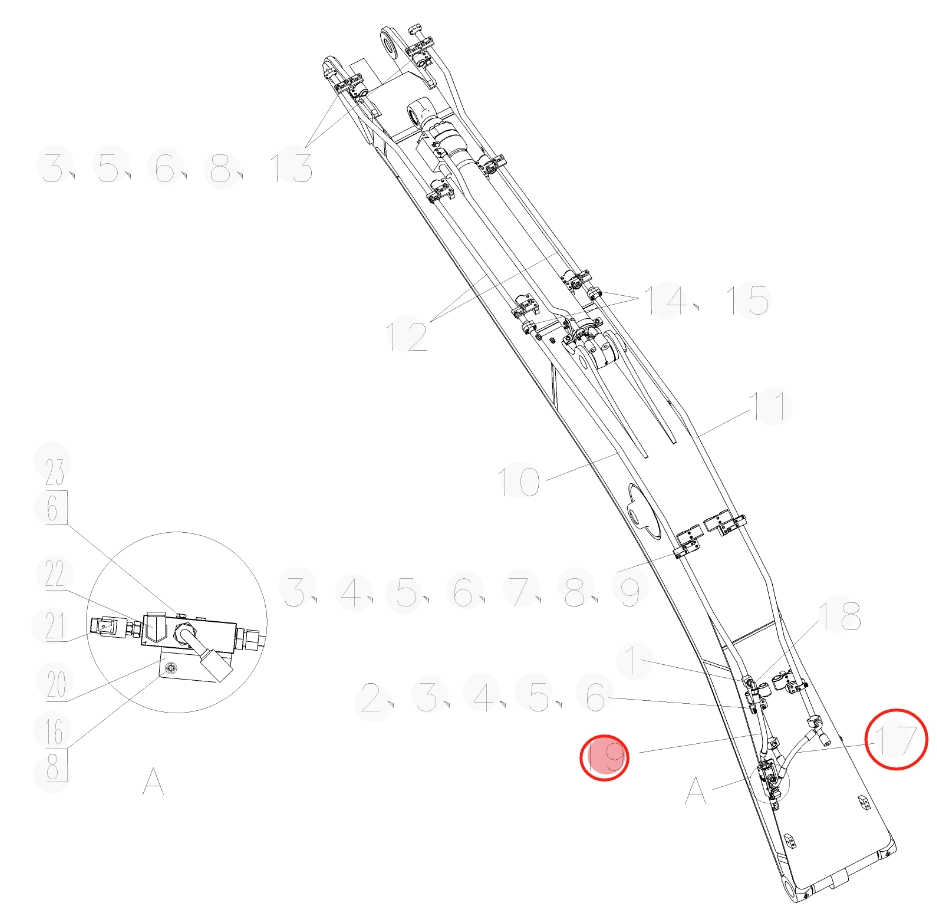

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number 730503001420 before removing the hose.
Repair specifications
- Part number
- 730503001420
- Diagram pipe number
- 17
- Installation route
- 大臂(后段)~卸压安全阀(破碎器)
- Hose specification
- DN20;6SH-12;35MPa
- Finished length
- 720 mm
- Working pressure
- 35 MPa
- Left fitting
- 90°公制内螺纹24°锥带O形圈-重型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-重型
- Quantity
- 1
Same system
Related Hoses
- Length
- 3,300 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Length
- 1,800 mm
- Specification
- DN25;6SH-16;35MPa
- Left fitting
- Light-series flangeOriginal Chinese: 法兰-轻型
- Right fitting
- 45°法兰-轻型
- Length
- 1,800 mm
- Specification
- DN25;6SH-16;35MPa
- Left fitting
- Light-series flangeOriginal Chinese: 法兰-轻型
- Right fitting
- 45°法兰-轻型
- Length
- 1,350 mm
- Specification
- DN25;1SN-16;8.8MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 45°法兰-轻型
- Length
- 410 mm
- Specification
- DN20;6SH-12;35MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 45°公制内螺纹24°锥带O形圈-重型
- Length
- 530 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Length
- 1,120 mm
- Specification
- DN25;1SN-16;8.8MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 公制内螺纹24°锥带O形圈-轻型
