Individual hose record
4473853 Hose Repair Specifications
Excavator · Hitachi · ZX180LC-5G · Solenoid Valve
Finished length350 mm
Locate this hose

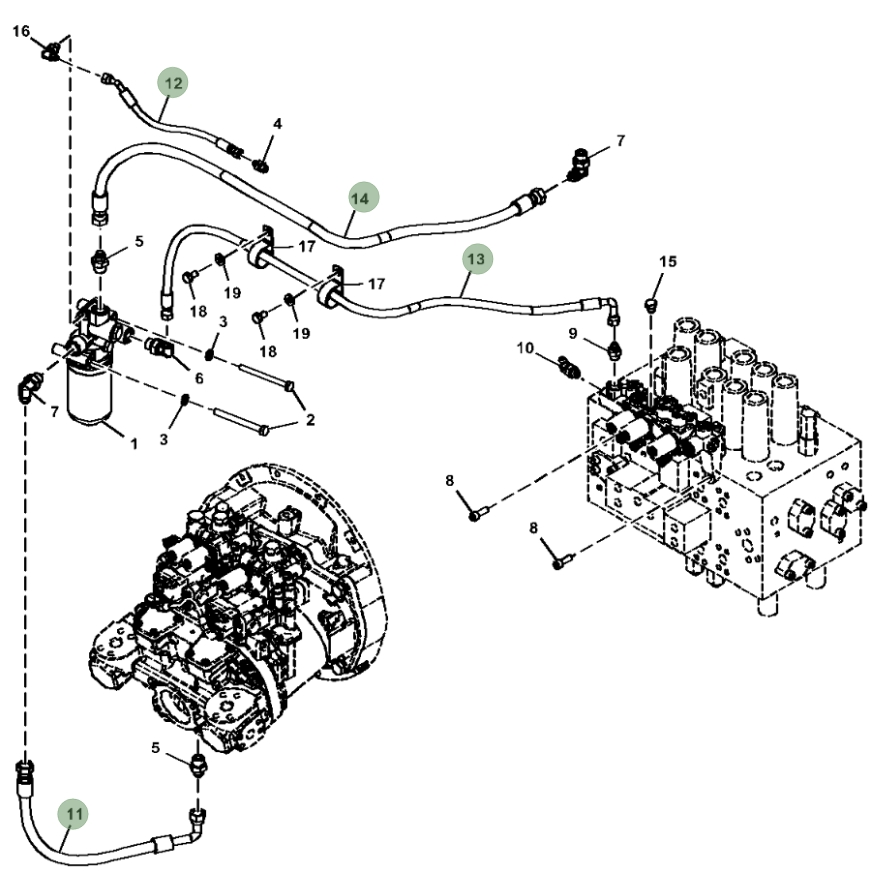

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 4473853 before removing the hose.
Repair specifications
- Part number
- 4473853
- Diagram pipe number
- 12
- Installation route
- 电磁阀~先导滤芯
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 350 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Quantity
- 1
