Individual hose record

DS2062025 Hose Repair Specifications

Excavator · Doosan · DX85R-3 · Swing Motor

Finished length730 mm

Locate this hose

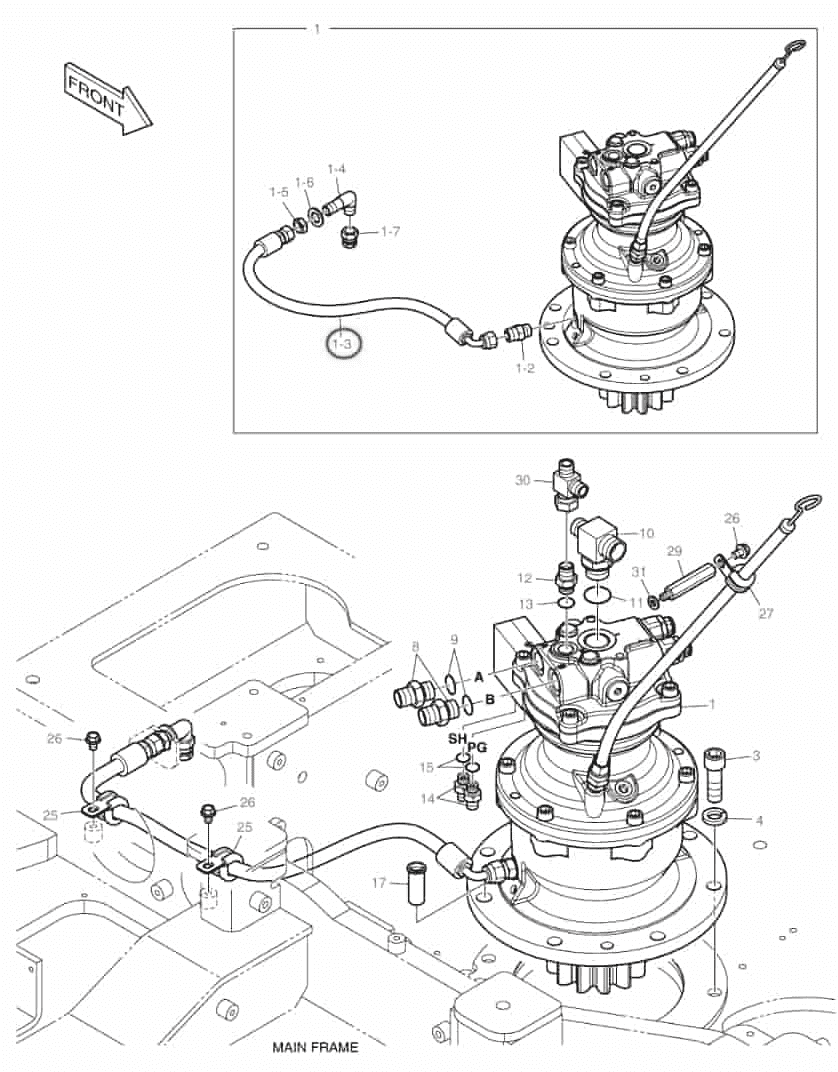

Installation diagram — Pipe No. 1-3

Locate Pipe No. 1-3 in the diagram, then confirm part number DS2062025 before removing the hose.

Part number: DS2062025
Diagram pipe number: 1-3
Installation route: 回转马达~堵头
Hose specification: DN10;1SN-06;18MPa
Finished length: 730 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 75°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 70

Installation route: 回转马达C口~电磁阀T口

Length: 420 mm
Specification: DN13;1SN-08;16MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 91

Installation route: 回转马达PG口~进回油阀P1口

Length: 1,550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 21

Installation route: 回转马达PG口~进回油阀P3口

Length: 1,550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 14

Installation route: 回转马达DB口~液压油箱

Length: 480 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 9

Installation route: 回转马达C口~铁管(散热器)

Length: 650 mm
Specification: DN19;1SN-12;10.5MPa
Left fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
