Individual hose record
4287546 Hose Repair Specifications
Excavator · Hitachi · EX550LC-3 · Control Lever
Finished length1,550 mm
Locate this hose

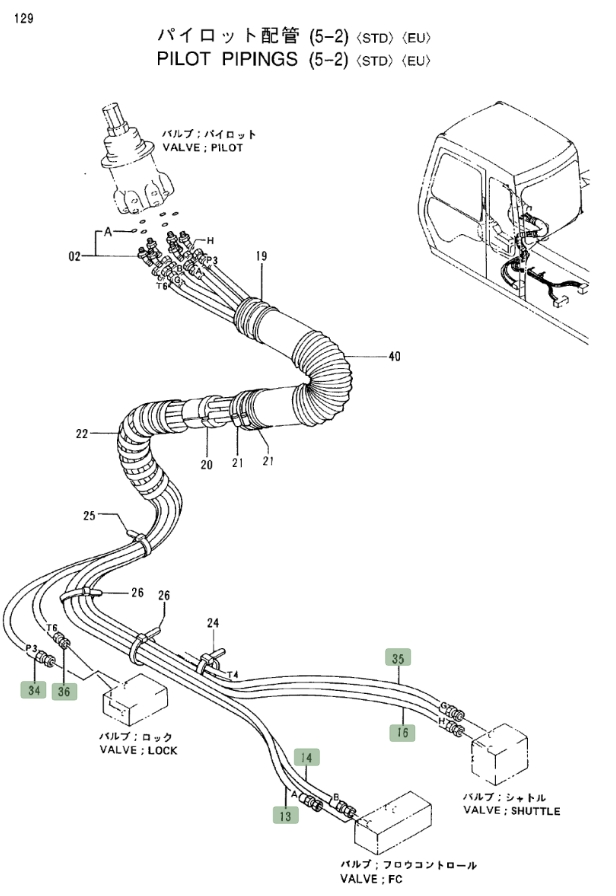

Installation diagram — Pipe No. 36
Locate Pipe No. 36 in the diagram, then confirm part number 4287546 before removing the hose.
Repair specifications
- Part number
- 4287546
- Diagram pipe number
- 36
- Installation route
- 右手柄~进回油阀
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,550 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
