Individual hose record
KHJ2066 Hose Repair Specifications
Excavator · Case · CX130E LC · Swivel Joint
Finished length2,150 mm
Locate this hose

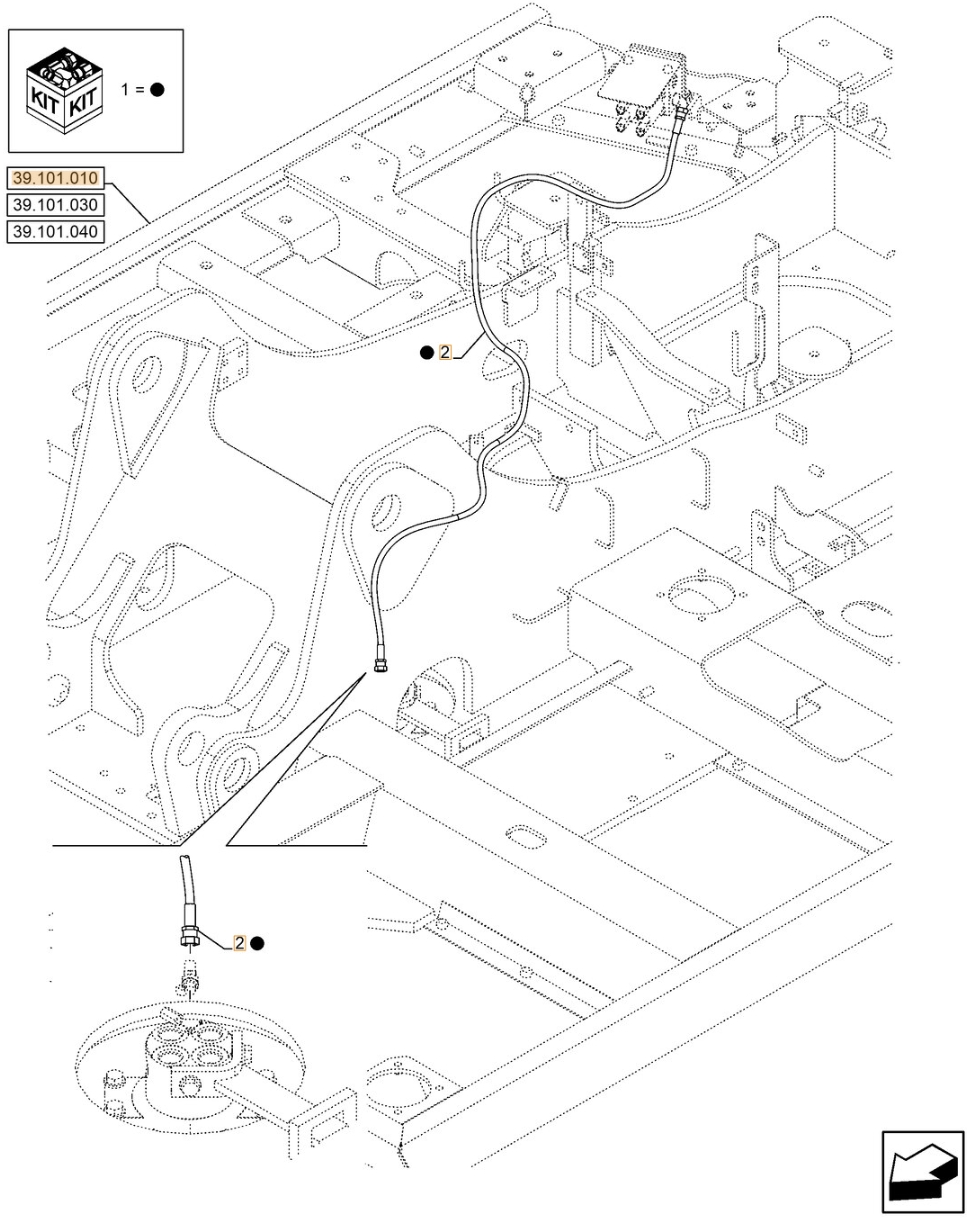

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number KHJ2066 before removing the hose.
Repair specifications
- Part number
- KHJ2066
- Diagram pipe number
- 2
- Installation route
- 回转接头~电磁阀
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,150 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
