Individual hose record

4322485 Hose Repair Specifications

Excavator · Hitachi · EX400LC-3C · Hydraulic Pump

Finished length1,000 mm

Locate this hose

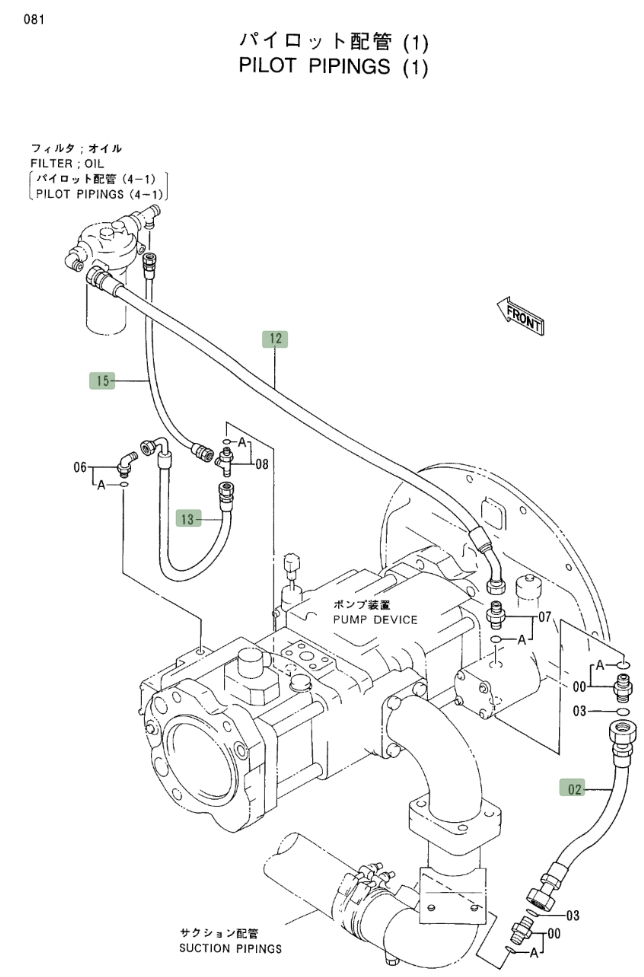

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 4322485 before removing the hose.

Hitachi EX400LC-3C installation diagram showing hydraulic hose 4322485 at Pipe No. 12 — Hitachi EX400LC-3CPart 4322485 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: 4322485
Diagram pipe number: 12
Installation route: 液压泵~先导滤芯
Hose specification: DN13;2SN-08;27.5MPa
Finished length: 1,000 mm
Working pressure: 27.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 45°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 2

4308037

Installation route: 先导泵~吸油铁管

Length: 400 mm
Specification: DN19;4层纤维-12;3.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 15

4343795

Installation route: 液压泵~先导滤芯

Length: 650 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
