Individual hose record
73050200A785 Hose Repair Specifications
Excavator · Sunward · SWE17F · Swivel Joint
Finished length400 mm
Locate this hose

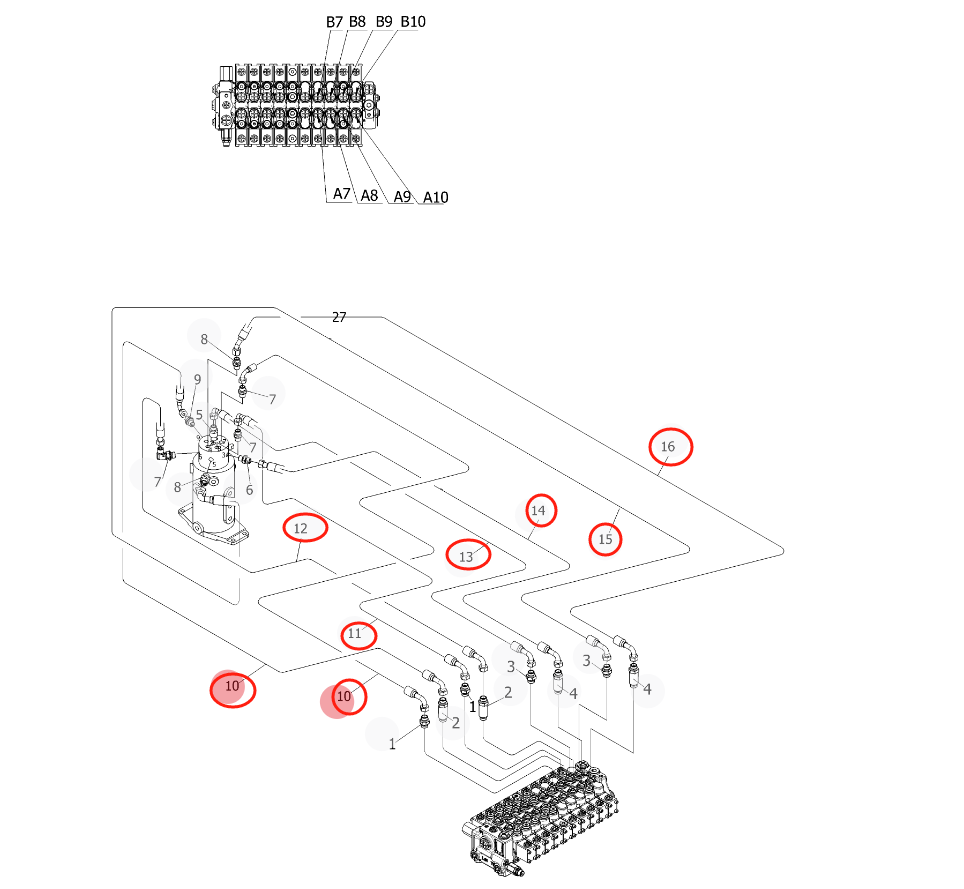

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 73050200A785 before removing the hose.
Repair specifications
- Part number
- 73050200A785
- Diagram pipe number
- 11
- Installation route
- 回转接头~分配阀B8
- Hose specification
- DN6;2SN-04;34.5MPa
- Finished length
- 400 mm
- Working pressure
- 34.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
